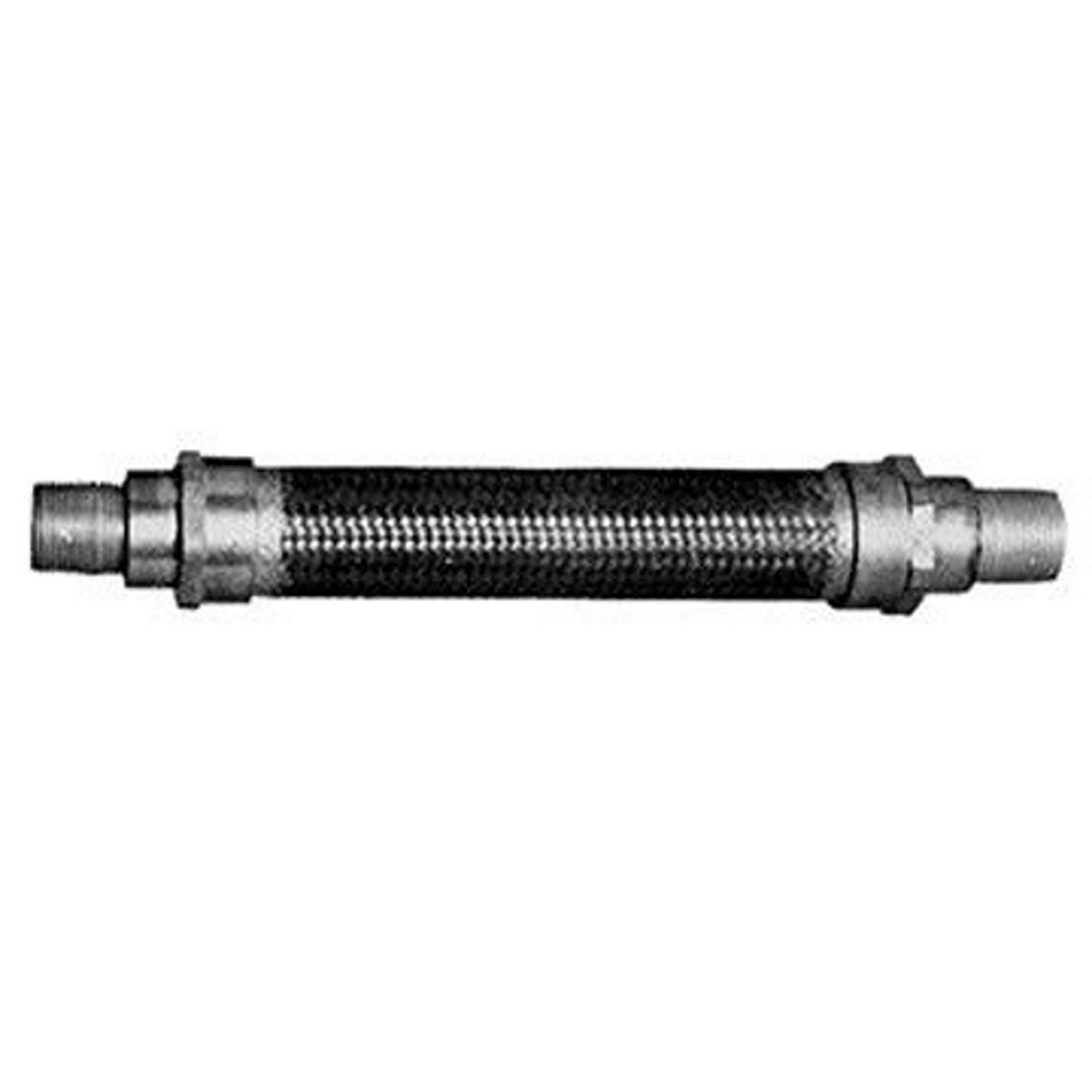

Appleton EXGJH-218 Dust-Ignitionproof Explosionproof Flexible Watertight Conduit Coupling 3/4 in

Product Description

The Appleton EXGJH-218 is a flexible conduit coupling designed for dust-ignitionproof and explosionproof applications. This coupling is suitable for use in areas where vibration or movement is a concern. It is ideal for situations requiring the connection of IMC or threaded rigid metallic conduits.

• Fits 3/4 inch trade size conduits
• Constructed of brass and bronze materials
• UL and CSA approved for hazardous locations

Product Highlights

This coupling offers strong mechanical protection and ensures electrical conductivity without the need for bonding jumpers. It features smooth integral bushings to protect conductor insulation.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Part Number: EXGJH-218

Technical Specifications

• Trade Size: 3/4 in
• Dimensions: 1-3/4 in OD x 18 in L
• Material: Brass/Bronze
• Application: For use with IMC/Threaded Rigid Metallic Conduit
• Standards: UL 886, CSA C22.2
• Country of Origin: MX
