Appleton EXGJH-16-SS Explosion-Proof Flexible Coupling Stainless Steel 1/2 inches 16.00 inches L

Product Description

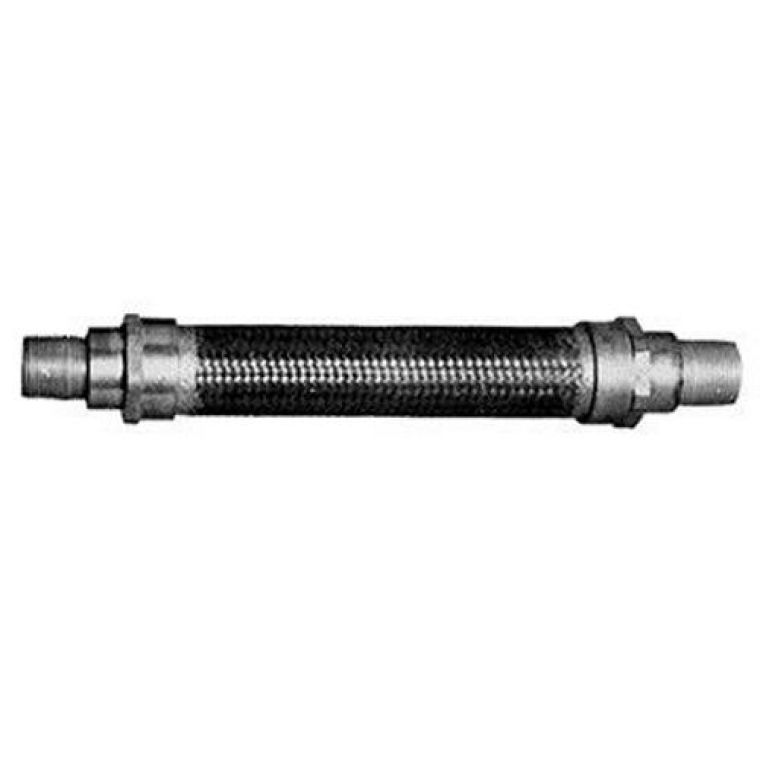

The APPLETON EXGJH-16-SS is an explosion-proof flexible coupling designed to join two lengths of rigid metal conduit (RMC) and intermediate metal conduit (IMC). It accommodates thermal expansion, contraction, and minor misalignment in conduit runs. This coupling is rated for Class I Division 1 and Class II Division 1 hazardous locations where flammable gases, vapors, or combustible dusts may be present.

• Flexible coupling
• Accommodates thermal expansion, contraction, and minor misalignment
• Explosionproof

Product Highlights

This stainless steel flexible coupling is explosion-proof and dust-ignitionproof, suitable for hazardous locations with flammable materials.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-16-SS
• Country of Origin: United States

Technical Specifications

• Brand Name: Appleton
• Brand Part Number: EXGJH-16-SS
• Conduit Type: RMC / IMC
• Enclosure Rating Specs: IP66
• Fitting Subtype: Flexible
• Fitting Type: Coupling
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: ATEX, Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G, UL 886
• Length: 16.000"
• Material: Stainless steel
• Specifications Met: ATEX 94/9/EC Ex II 2G/Ex d IIC Gb/Ex II 2D/Ex t IIIC Db, Class III, ATEX LCIE 11 ATEX 3006U, Class II Groups E F G/, CSA C22.2 #25/C22.2 #30/CSA 065181, EN 60079-0/60079-1/60079-31, EN/IEC 60529: IP66, FLEXCO, NEC/CEC Class I Groups A B C D/, UL 886/1203/E10444
• Trade Size: 1/2"
• Manufacturer: Appleton
• Component: Flexible Coupling
• MPN: Exgjh-16
• Country of Origin: United States
