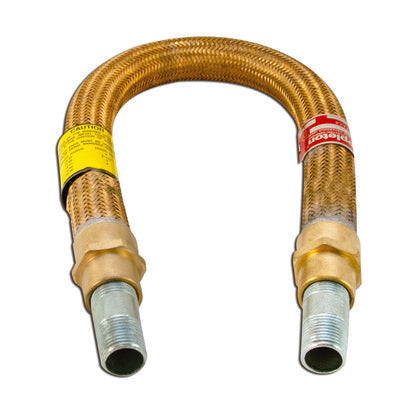

Appleton EXGJH-130 Flexible Coupling 1/2 x 30 inches EXGJH130

Product Description

The APPLETON EXGJH-130 flexible coupling is designed for use in areas where vibration or movement is a problem. It can be used in place of rigid conduit in difficult bend situations. The coupling is suitable for wet locations and has female end fittings with removable male nipples.

• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• Heavy duty design resists mechanical abuse

Product Highlights

Explosionproof and dust-ignitionproof flexible couplings for use in areas where vibration is a problem. Can be used in place of rigid conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-130
• Country of Origin: United States

Technical Specifications

• Brand: Appleton
• Part Number #: EXGJH130
• Series: EXGJH
• Size: 1/2 in
• For Use With: IMC/Threaded Rigid Metallic Conduit
• Material: Brass/Bronze
• Finish: Natural
• MPN: EXGJH-130, EXGJH130
• Model: EXGJH-130
• Country of Origin: United States
• Product Series: EXGJH
• Description: UNILETS Flexible Coupling, Trade Size: 1/2 IN, Outside Diameter: 1.41 IN, Flex Length: 30 IN, Radius: 10 IN Bending, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type: 2 Male Nipples
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 0.5 "
• Flex Length: 30 "
• Ground Pass Through: Yes
• Protection Rating: Liquid Tight
• Composition: Bronze
• Insulated Throat: Yes
• Hazardous Location: Yes
• Approvals: CSA, UL
• Diameter: 1/2 in
• Length: 30 in
• Radius: 10 in
• Type: Flexible Coupling
• Sub Brand: UNILETS
• Outside Diameter: 1.41 in
• Dimensions: 1.41 in OD x 30 in L
