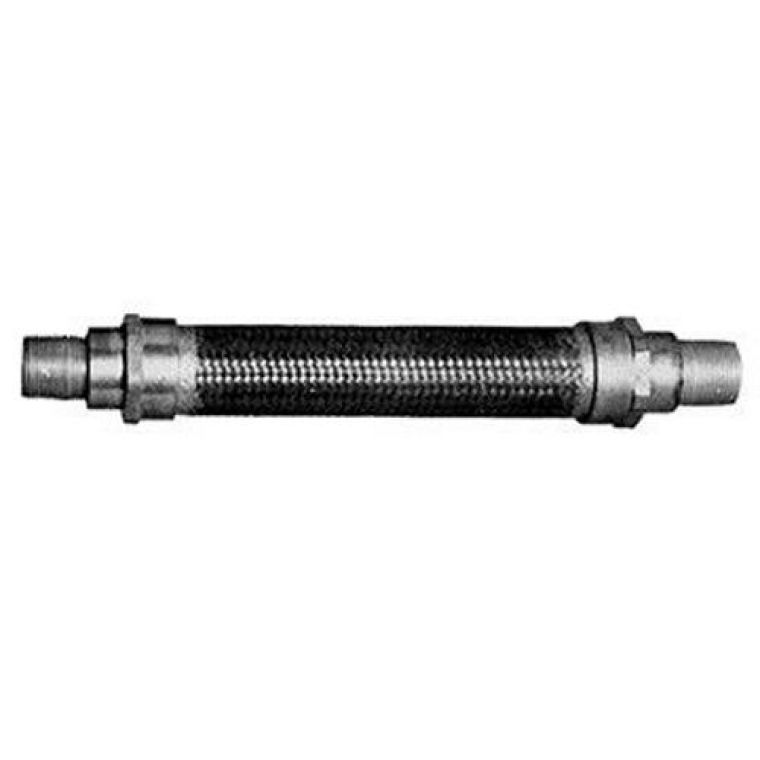

Appleton EXGJH-112-SS EXGJH Flexible Coupling 1/2 x 12 inches Length

Product Description

The APPLETON EXGJH-112-SS EXGJH Flexible Coupling, with 1/2 x 12 Inch Length, is explosionproof and dust-ignitionproof. These flexible couplings are used in areas where vibration and/or movement is a problem and in place of rigid conduit in difficult-bend situations. Suitable for wet locations and have female end fittings with removable male nipples.

• Explosion proof, dust-ignition proof, watertight
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

The Appleton EXGJH flexible couplings are ideal for use with threaded rigid metal conduit and IMC in areas where flexibility and protection are needed.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-112-SS
• Country of Origin: MX

Technical Specifications

• Diameter: 1/2 in
• Length: 12 in
• Material: Stainless Steel
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Catalog Number: EXGJH112SS
• Connection: Female Threaded
• Country of Origin: MX
• Dimensions: 1.41 in OD x 12 in L
• Flexibility: Rigid And IMC
• Height: 1.14 in
• Outside Diameter: 1.41 in
• Series: EXGJH
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
• Standards: ARRA CompliantRoHS CompliantUL 886UL 1203UL File No. E10444CSA C22.2 No. 25/30CSA 065181, Class I, Groups A, B, C, D Class II, Groups E, F, G Class IIIATEX II2 GD Ex d IIC Gb Ex t IIIC Db
• Sub Brand: UNILETS
• Trade Size: 1/2 in
• Type: Dust-Ignitionproof Explosionproof Flexible Watertight
• UNSPSC: 39131707
• UPC 12: 781381611862
• Width: 6.20 in
• Brand: Appleton
• Manufacturer: Appleton
• Finish: Natural
• Size: 1/2 in
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Applications: Used in areas where vibration and/or movement is a problem. Also used in place of rigid conduit in difficult-bend situations.

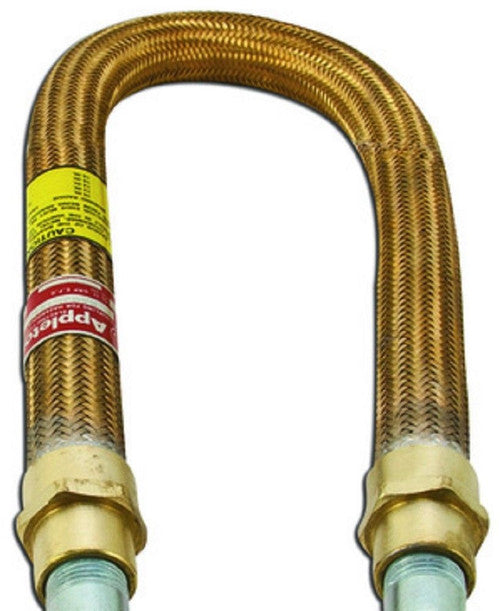

• Materials (1/2" thru 2"): outer bronze braid, inner brass core with insulating liner
• Materials (2-1/2" thru 4"): outer stainless steel braid, inner stainless steel core with insulating liner
• End Fittings (1/2" thru 2"): brass
• End Fittings (2-1/2" thru 4"): stainless steel
• Unions (1/2" thru 1"): zinc plated steel
• Unions (1-1/4" thru 2"): ductile iron
• Close nipples: zinc plated steel
• NEC/CEC Certifications and Compliances: UL Standard: 886 (1203). UL Listed: E10444. CSA Standard: C22.2 No. 25, C22.2 No. 30. CSA Certified: 065181
• ATEX Certifications and Compliances: Certfication Type FLEXCO (Excludes Nipples and Unions), Gas, Zones 1 and 2: Conforming to ATEX 94/9/EC: II 2G, Type of Protection: Ex d IIC Gb, Dusts, Zones 21 and 22:, Conforming to ATEX: II 2D, Type of Protection: Ex t IIIC Db, Ambient Temperatures: -40 ? C ? to ? + 150 ? C, (40 ? F ? to ? + 302 ? F), Ex Standards: EN 60079-0, 60079-1, EN 60079-31, ATEX Certificate : LCIE 11 ATEX 3006U, Index of Protection according EN/IEC 60529: IP66
• Fitting Size: 3/4"
• Conduit Type: RMC / IMC
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: ATEX, Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G, UL 1203, UL 886
