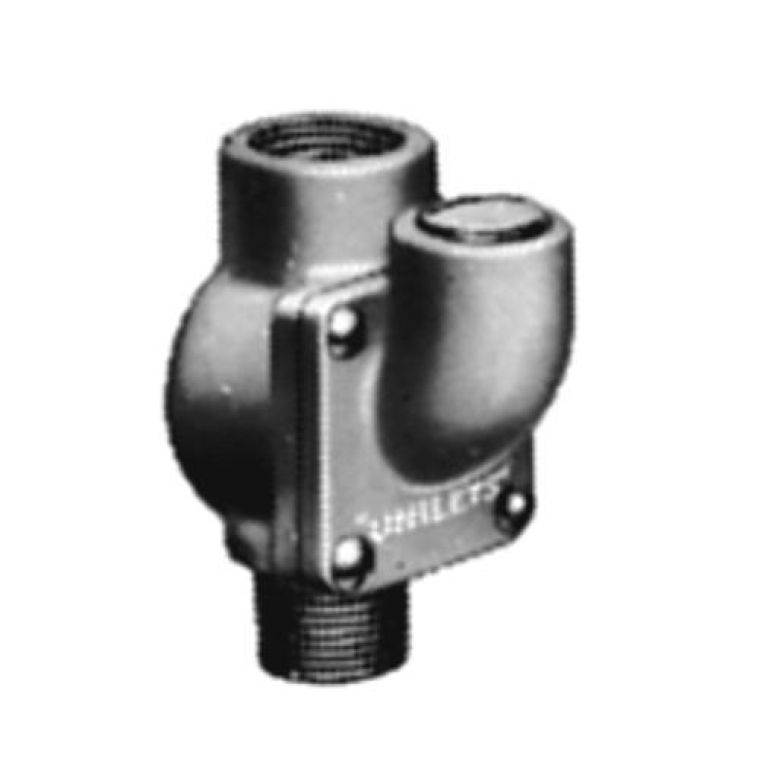

Appleton ESUM-100 Drain Seal 1 inches

Product Description

The Appleton ESUM-100 is a 1" female/male drain seal designed to prevent the passage of gases, vapors, or flames in conduit systems. Suitable for use with threaded rigid metal conduit and intermediate metal conduit (IMC). Constructed from malleable iron with Appleton's triple-coat finish.

• Designed for vertical and horizontal use
• Prevents passage of gases, vapors, or flames
• 25% conductor fill per NEC 501.15(C)(6)

Product Highlights

This universal sealing fitting accommodates any conduit orientation in hazardous classified locations and confines internal explosion to the sealed section.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ESUM-100
• Country of Origin: United States

Technical Specifications

• Part Number: ESUM100
• Manufacturer: Appleton
• Brand: Appleton
• Item Subcategory: Utility conduit fitting
• Model: ESUM100
• MPN: ESUM100
• Country of Origin: United States
• Conduit Type: RMC / IMC
• Finish: Triple Coated
• Fitting Subtype: Universal
• Fitting Type: Sealing Fitting
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 1, Groups A, B, C, D, Class II, Division 1, Groups E, F, G, UL 1203, UL 886
• Material: Malleable Iron
• Specifications Met: CSA C22.2 No. 30, UL 1203, UL 886, UL File No. E10444, Class II, Class II, Div 1 and 2, Groups E, F, G, CSA 065181, Class I, Div 1 and 2, Groups C, D
• Trade Size: 1"
