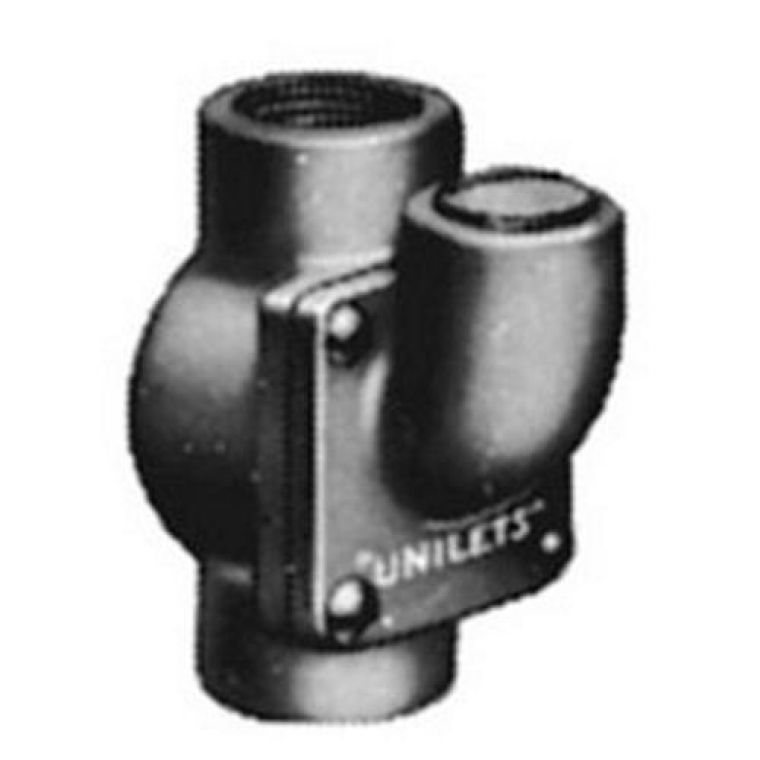

Appleton ESUF-100 Sealing Unilet 1 Female

Product Description

The APPLETON ESUF-100 is a universal sealing fitting, also known as a conduit seal-off, that prevents the passage of gases, vapors, and flames between sections of a conduit system and accommodates any conduit orientation in hazardous classified locations. Constructed from malleable iron with a triple-coat finish for corrosion protection.

• Universal sealing fitting
• Prevents passage of gases, vapors, and flames
• Accommodates any conduit orientation

Product Highlights

The APPLETON ESUF-100 confines any internal explosion to the sealed section and prevents pressure piling through the conduit system.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ESUF-100

Technical Specifications

• Material: Malleable Iron
• Diameter: 1 in
• Brand Name: Appleton
• Brand Part Number: ESUF-100
• Conduit Type: RMC / IMC
• Finish: Triple Coated
• Fitting Subtype: Universal
• Fitting Type: Sealing Fitting
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G, UL 886
• Specifications Met: Class III, UL File No. E10444, Class I, Div 1, 2, Groups C, D, Class II, Div 1, 2, Groups E, F, G, CSA C22.2 No. 30, 065181, UL 886/1203
• Trade Size: 1 "
• Product Series: ESU
• Family Series: Appleton Fittings, ESU Series
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female Hub
• Position: Vertical and Horizontal
• Turning Radius: 1.38 "
• Composition: Metallic
• Hazardous Location: Yes
