Product Description

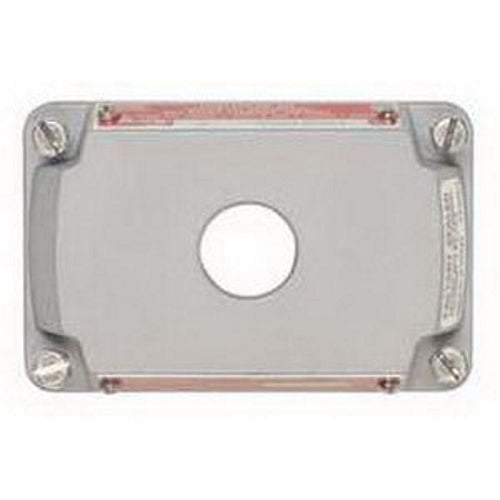

The Appleton ESKB-1PBQ is a 1-hole cover and nameplate made of copper-free aluminum. It is designed for use in control stations with its 3/4 inch tapped opening. This cover helps confine arcing during the operation of devices, which prevents ignition in hazardous environments. The ESKB-1PBQ is suitable for locations where flammable gases or dust may be present. It is common in chemical plants, refineries, and other settings requiring safety in electrical installations.
- Explosionproof and dust-ignitionproof
- Factory sealed to eliminate the need for additional sealing fittings
- Designed for push button or pilot light switch applications
Product Highlights
This cover assembly features captive stainless steel bolts and is built to withstand corrosive environments. It maintains high durability with minimal maintenance.
Product Information
Standard Information
-
Brand: Appleton
-
Manufacturer: Appleton Electric
-
Catalog Number: ESKB1PBQ
Technical Specifications
-
Material: Copper-free aluminum
-
Application: For push button or pilot light switch
-
Opening Size: 3/4 inch tapped
-
Dimensions: Rectangular
-
Consists of: (4) captive stainless steel bolts
-
Country of Origin: Mexico
