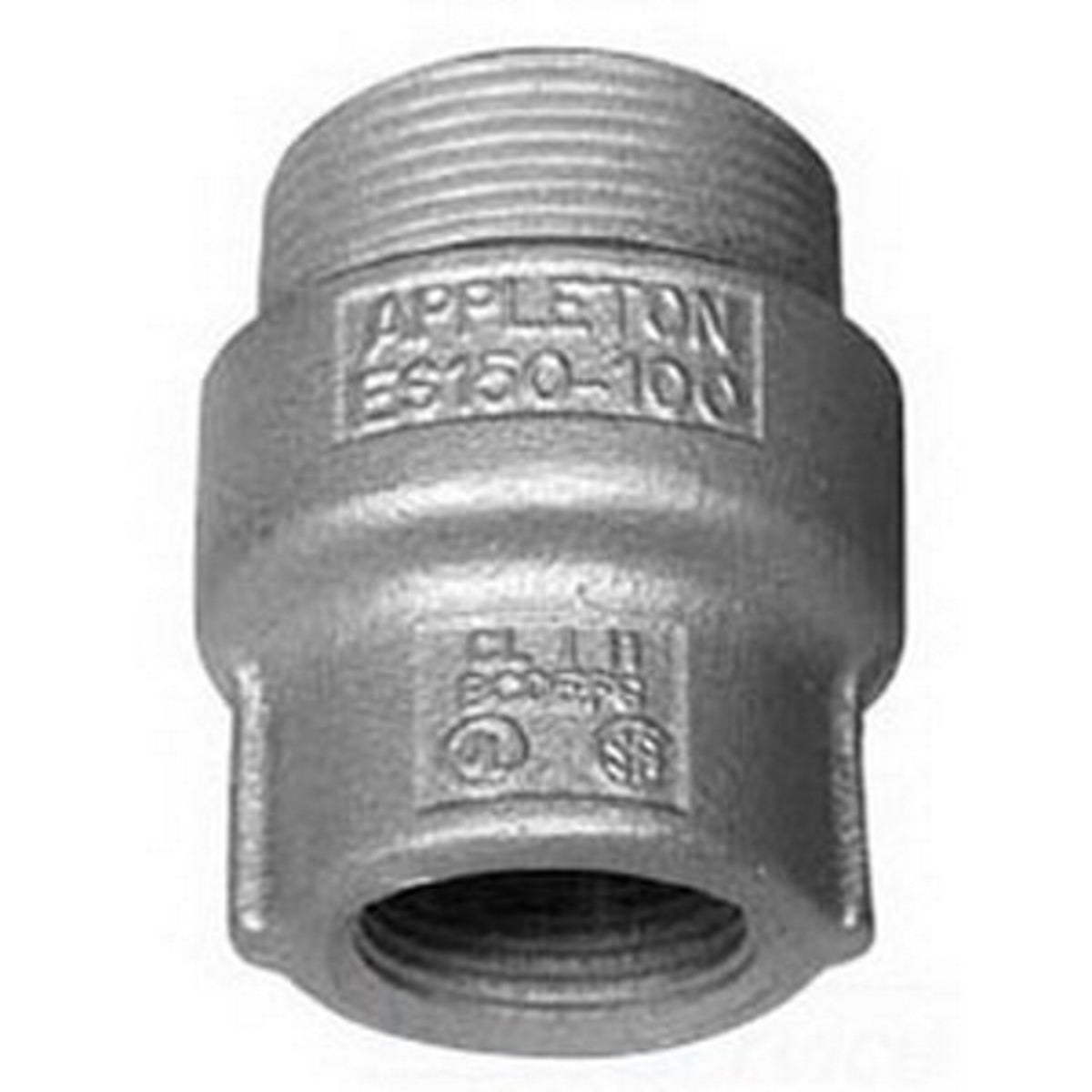

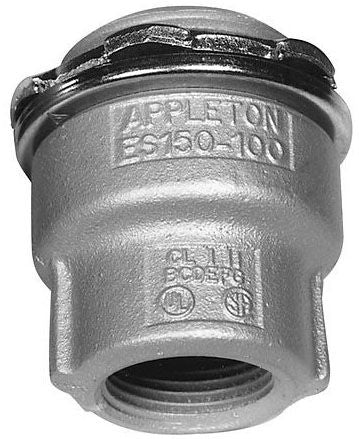

Appleton ES200150 1-1/2 Sealing Hub - MA

Product Description

The Appleton ES200150 is a sealing hub designed for threaded rigid metal conduit and IMC applications. This sealing hub features malleable iron construction with a triple-coat finish, which includes zinc electroplate, chromate, and epoxy powder coating. The hub connects using tapered MNPT and FNPT threads, providing a secure fit. It has a cubic capacity of four point sixty-nine cubic inches and dimensions of three point thirteen inches in length and two point eight inches in height.

• Size: 1-1/2 X 2 inches
• Material: Malleable Iron
• Connection: Tapered MNPT X Tapered FNPT

Product Highlights

This sealing hub is suitable for various electrical installations and ensures proper sealing to prevent moisture and contaminants from entering conduit systems.

Product Information

Standard Information

• Brand: Appleton
• MPN: ES200150

Technical Specifications

• Catalog Number: ES200150
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Cubic Capacity: 4.69 CU IN
• Length: 3.13 inches
• Height: 2.8 inches
• Special Features: Explosionproof, dust-ignitionproof; protects conductor insulation; tightly tapped threads for ground continuity
• Country of Origin: Mexico
