Product Description

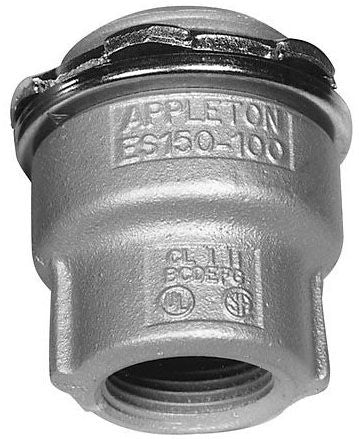

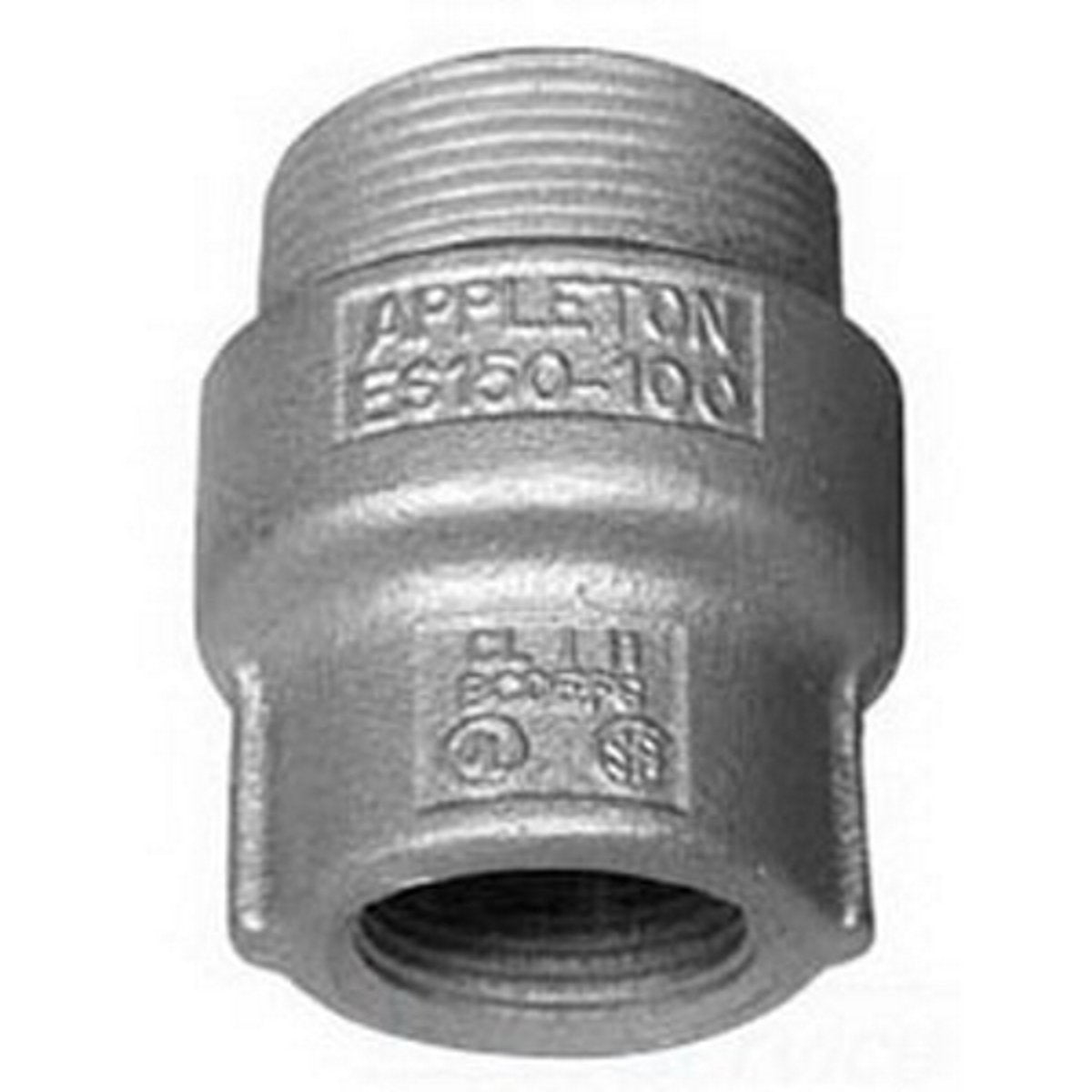

The Appleton ES150100 Sealing Hub is designed for use with threaded rigid metal conduit and IMC. This sealing hub provides reliable connections for electrical fittings.
- Size: 1-1/2 Inch x 1 Inch
- Material: Malleable Iron
- Connection: Tapered MNPT x Tapered FNPT
Product Highlights
The Appleton sealing hub features a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat. It is suited for applications requiring explosionproof and dust-ignitionproof qualities.
Product Information
Standard Information
-
Catalog Number: ES150100
-
Manufacturer: Appleton Electric
Technical Specifications
-
Material: Malleable Iron
-
Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
-
Cubic Capacity: 3.1 CU IN
-
Application: For Use With Threaded Rigid Metal Conduit and IMC
-
Length: 3.13 inches
-
Height: 3 inches
-
Width: 3.6 inches
-
Weight: 1.15 pounds
