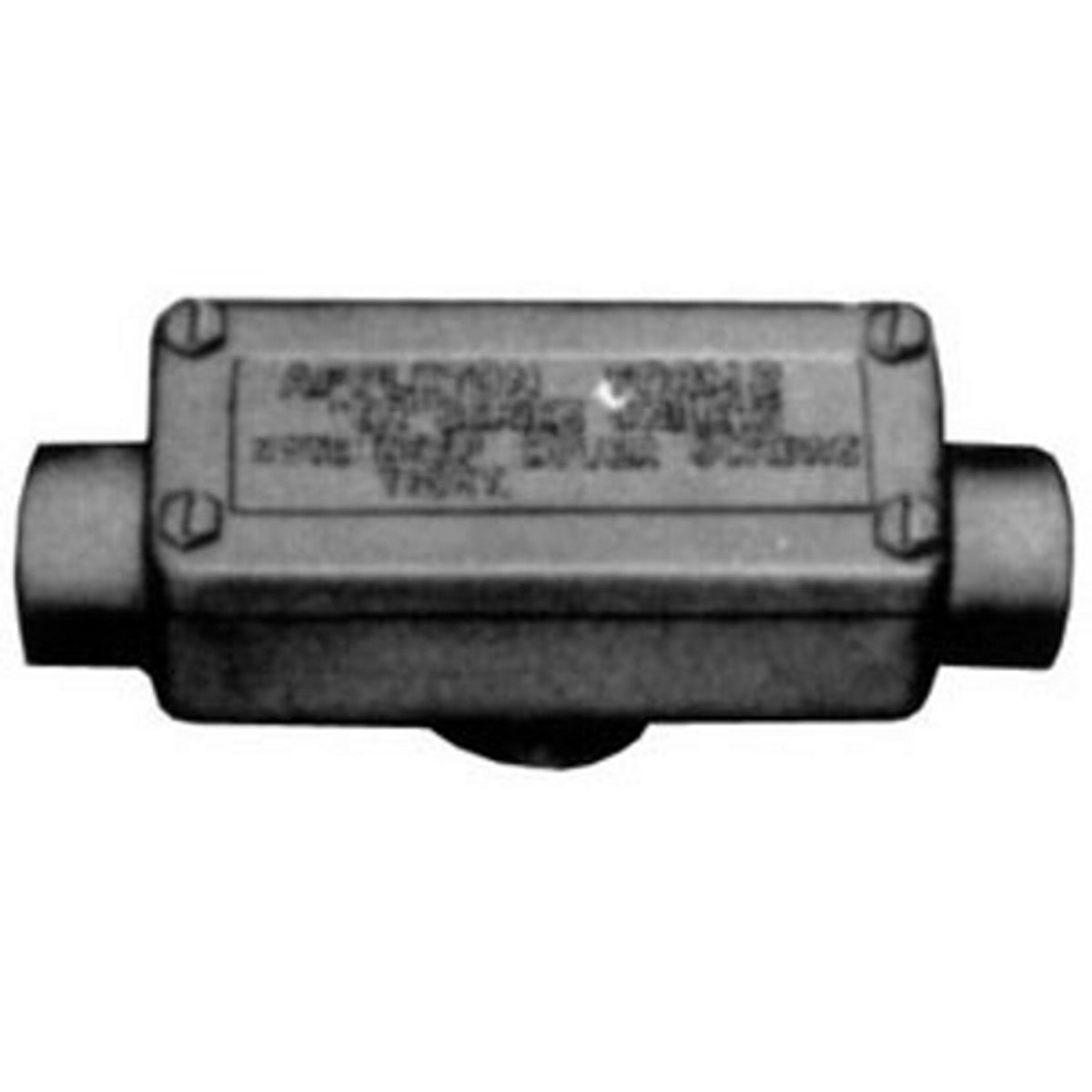

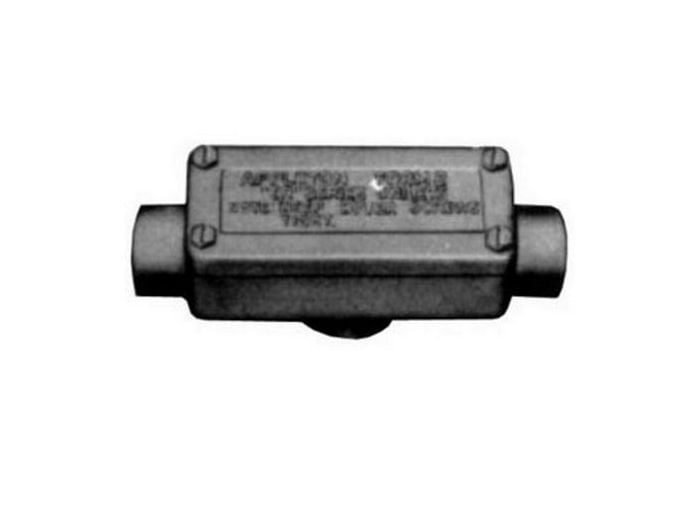

Appleton ERTB75 Unilets ER Type TB Conduit Outlet Box 3/4 Inch

Product Description

The APPLETON ERTB75 UNILETS ER Type TB Conduit Outlet Box with Cover is for use with rigid metal conduit. Constructed from malleable iron with a triple-coat finish, this 3/4 inch TB-style conduit outlet box is ideal for classified locations. It is corrosion-resistant and provides access for maintenance.

• Corrosion-resistant for indoor/outdoor use
• Malleable iron body provides resistance to corrosion, impact, and shock
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity

Product Highlights

This explosionproof and dust-ignitionproof conduit outlet box is designed for pulling wires, connecting conduit lengths, and changing conduit direction.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ERTB75
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ERTB75
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Rigid Metal Conduit
• Material: Malleable Iron
• Special Features: Meet a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit; Provide access for maintenance; Malleable iron bodies have high tensile strength and ductility; Provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with covers; General purpose wiring; Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited; Six different hub arrangements; Ground surface contact between body and cover assures a flame-tight joint; Smooth, rounded integral bushing in each hub type box protects conductor insulation
• Standard: UL File Number E30513, R1044, 009795, Class I, Division 1 And 2, Group C And D Class II, Division 1 And 2, Groups E, F, G Class III
• RoHS Indicator: Contact Manufacturer
• UPC: 781381302951
• GTIN: 00781381302951
• Item Type: ER Type TB Conduit Outlet Box With Cover
• Series: ER Series
• Suitable For Use With: Threaded Rigid Metallic Conduit
• Type: TB-Style Dust-Ignitionproof Explosionproof
• UNSPSC: 39121308
• Finish: Triple Coated
• Manufacturer Name: Emerson Electric
• Size: 3/4 in
• Product Series: ER
• Manufacturer Part Number: ERTB75
• Connection Type: Threaded
• Style: ERTB
• Shape: TB
• Number of Hubs: 3
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Iron
• Cover Included: Yes
• Cover Type: Blank
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Explosionproof, Dust-Ignitionproof, corrosion, impact & shock resistance
