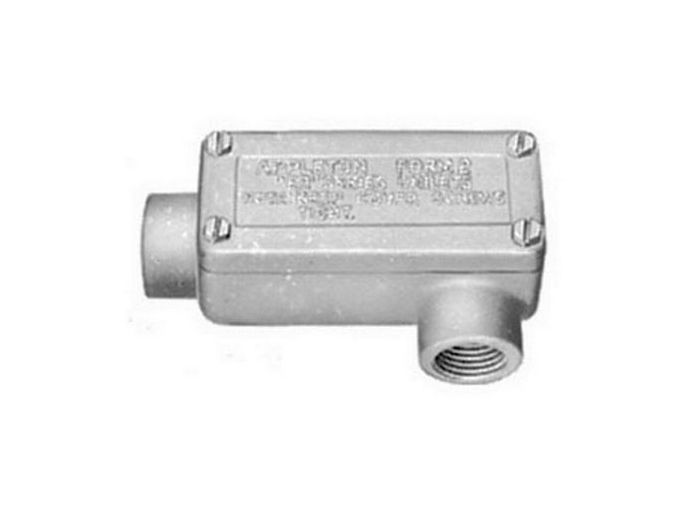

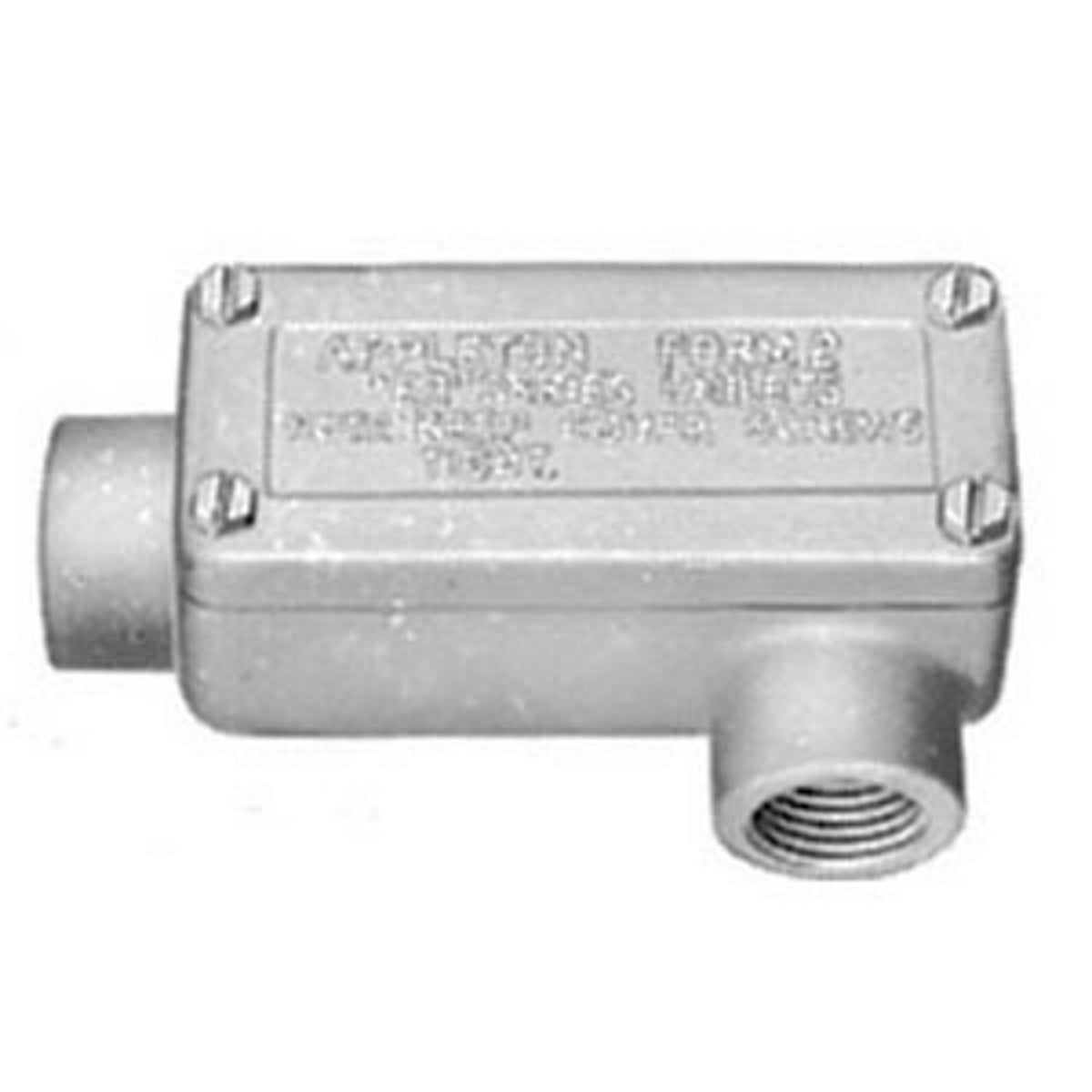

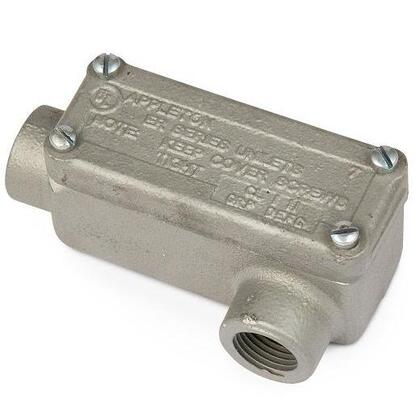

Appleton ERLL75 ER Type LL Conduit Outlet Box With Cover 3/4 Inch

Product Description

The APPLETON ERLL75 is an ER Type LL conduit outlet box with a cover. Constructed from malleable iron with a triple-coat finish, this outlet box is corrosion-resistant and suitable for indoor or outdoor use. It facilitates wire pulling, connects conduit lengths, and changes conduit direction. Features accurately tapped, tapered hub threads for tight joints and ground continuity.

• Corrosion-resistant, ideal for indoor or outdoor use
• Connects conduit lengths and changes direction of conduit
• Malleable iron body provides resistance to corrosion, impact, and shock

Product Highlights

This conduit outlet box meets a wide range of classified area requirements and provides access for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ERLL75
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ERLL75
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Rigid Metal Conduit
• Material: Malleable Iron
• Special Features: Meet a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit; Provide access for maintenance; Malleable iron bodies have high tensile strength and ductility; Provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with covers; General purpose wiring; Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited; Six different hub arrangements; Ground surface contact between body and cover assures a flame-tight joint; Smooth, rounded integral bushing in each hub type box protects conductor insulation
• Standard: UL File Number E30513, R1044, 009795, Class I, Division 1 And 2, Group C And D Class II, Division 1 And 2, Groups E, F, G Class III
• RoHS Indicator: Contact Manufacturer
• UPC: 781381302654
• GTIN: 00781381302654
• Item Type: ER Type LL Conduit Outlet Box With Cover
• Length: 9.6000 Inch
• Width: 8.8000 Inch
• Height: 0.6200 Inch
• Hub Size: 3/4 Inch
• Number of Hubs: 2
• Hub Location: (2) Side
• Shape: Rectangular
• Cover Type: Blank
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA C22.2
• Product Series: ER
• Manufacturer Part Number: ERLL75
• Family Series: Appleton Electrical Boxes, ER Series
• Description: UNILETS ER Type LL Conduit Outlet Box With Cover, Hub Size: 3/4 IN, Height: 2 IN, Material: Malleable Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL File Num
• Connection Type: Threaded
• Style: ERLL
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Iron
• Cover Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Explosionproof, Dust-Ignitionproof, corrosion, impact & shock resistance
• Finish: Triple Coated
• Hub_Size: 3/4
• Sub_Brand: Appleton
• Type: LL-Style Dust-Ignitionproof Explosionproof
