Appleton ERLB75 3/4 Inch Type ERLB Tight Fitting

Product Description

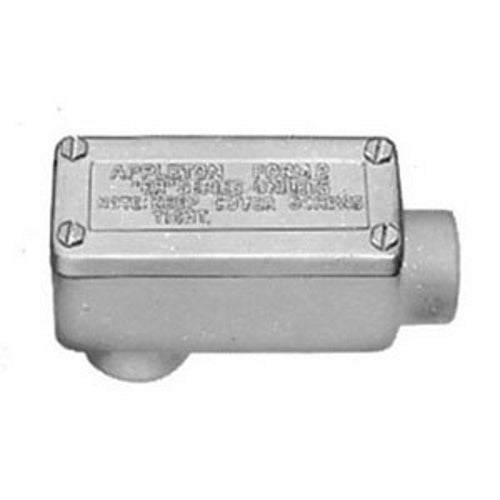

The Appleton ERLB75 is a three-quarter inch Type ERLB tight-fitting conduit outlet box. Designed for use with rigid metal conduit, this product features a cover and a hub size of three-quarter inches. The outlet box is made from malleable iron and has a triple-coat finish combining zinc electroplate, chromate, and epoxy powder coat. This ensures durability and resistance against corrosion.

• Hub Size: Three-quarter inch
• Material: Malleable iron
• Special Features: Tapered female threaded connection for secure installation

Product Highlights

This conduit outlet box is ideal for various applications, especially in classified locations due to its resistance to corrosion and impact. It provides an effective solution for connecting conduit lengths and changing the direction of conduit runs while maintaining access for maintenance.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: ERLB75

Technical Specifications

• Material: Malleable Iron
• Width: One and three-quarter inches
• Height: Two point six nine inches
• Hub Size: Three-quarter inch
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Applications: For use with rigid metal conduit
• UPC: 78138130255
• GTIN: 00781381302555
