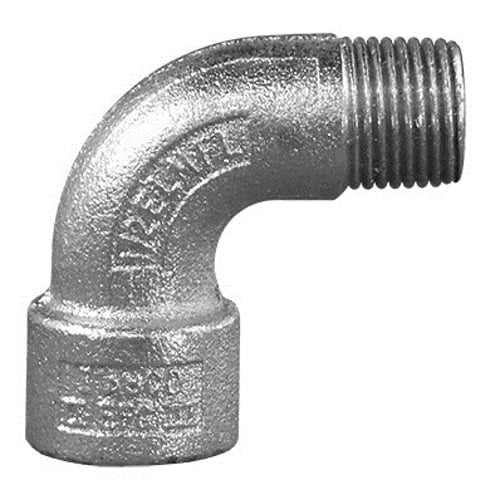

Appleton ELMFL90-125 90 Degree Long Male to Female Elbow

Product Description

The Appleton ELMFL90-125 is a 90-degree long male to female elbow made from malleable iron. This fitting is zinc electroplated and designed for use in hazardous locations. It is suitable for threaded rigid metal conduit and intermediate metal conduit (IMC). The trade size is one and one-quarter inches with a height of three point three one inches. This product meets UL standards including UL 886, and it is certified for use in Class I, II, and III locations.

• Material: Malleable Iron
• Finish: Zinc Electroplate
• Trade Size: 1-1/4 Inch

Product Highlights

This elbow fitting is explosionproof and dust-ignitionproof. It features a smooth, rounded integral bushing that protects conductor insulation. Each hub has accurately tapped, tapered threads that ensure tight, rigid joints, maintaining ground continuity.

Product Information

Standard Information

• Catalog Number: ELMFL90-125
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplate
• Trade Size: 1-1/4 Inch
• Connection: Tapered MNPT X Tapered FNPT
• Height: 3.31 Inches
• Standards: UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30
• Country of Origin: Mexico
