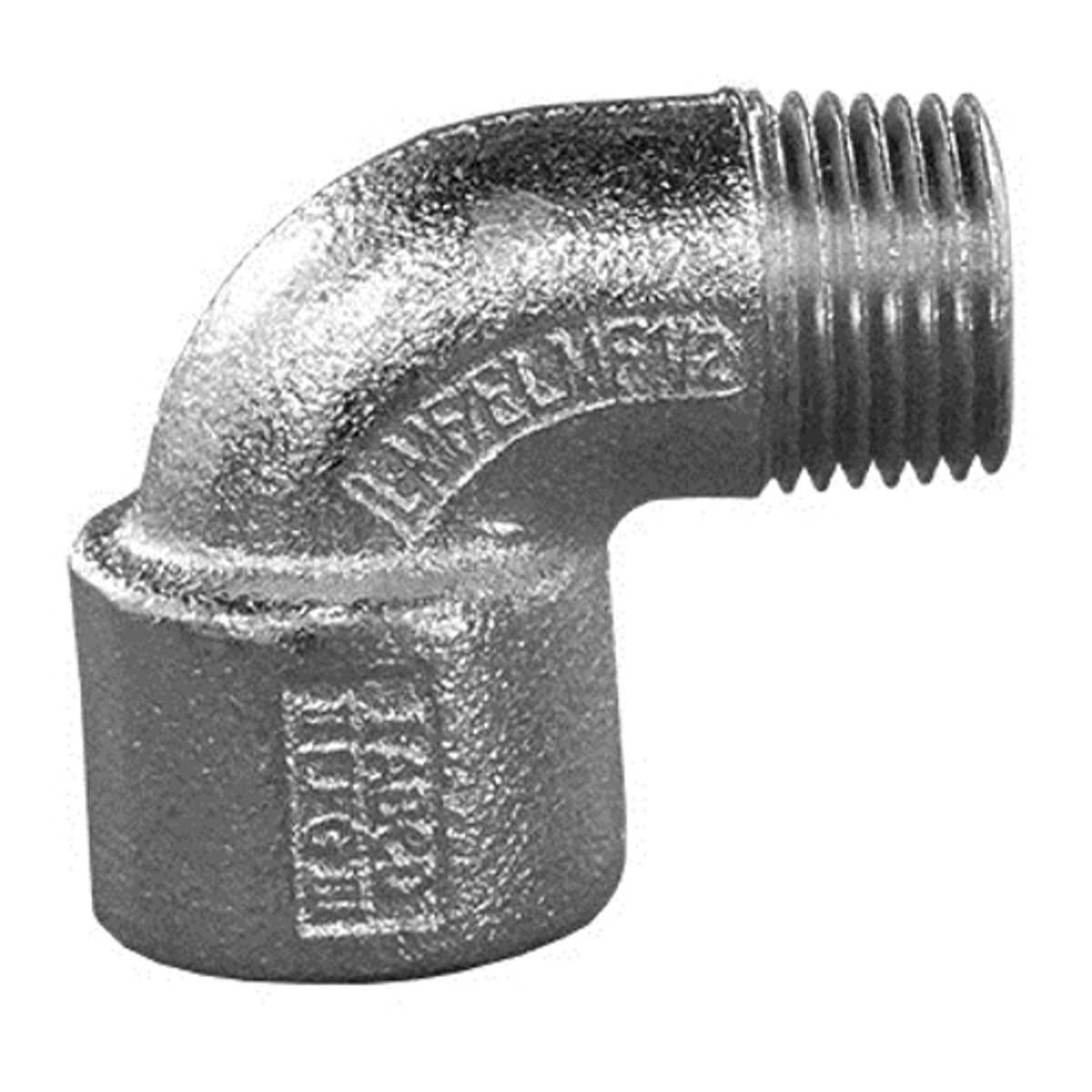

Appleton ELMF90-125 90 Degree Male Female Elbow (1-1/4 in, 90 deg)

Product Description

Appleton ELMF90-125 is a UNILETS 90-degree dust-ignitionproof, explosionproof conduit elbow for use with threaded rigid metal conduit and IMC. It is constructed of malleable iron with an electroplated zinc finish and provides a tapered MNPT x tapered FNPT male-to-female threaded connection for 1-1/4 in trade conduit. The short Type L 90-degree design has Dimension A of 2.06 in and includes smooth rounded bushings to protect conductor insulation.

• Malleable iron construction with electroplated zinc finish and smooth rounded integral bushings
• Tapered MNPT x tapered FNPT male-to-female threads for 1-1/4 in trade conduit; Dimension A = 2.06 in; short Type L 90-degree elbow
• Listed to UL 886 and CSA standards (UL File No. E10444; CSA C22.2 No. 25 and 30) for Class II Division 1 and 2 Groups E, F, G and Class III hazardous locations

Product Highlights

Explosionproof 90-degree malleable iron elbow for threaded rigid conduit and IMC

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ELMF90-125
• Country of Origin: United States
