Appleton ELMF90-100 90 Deg Male X Female Elbow 1 Inch Replacement MPN

Product Description

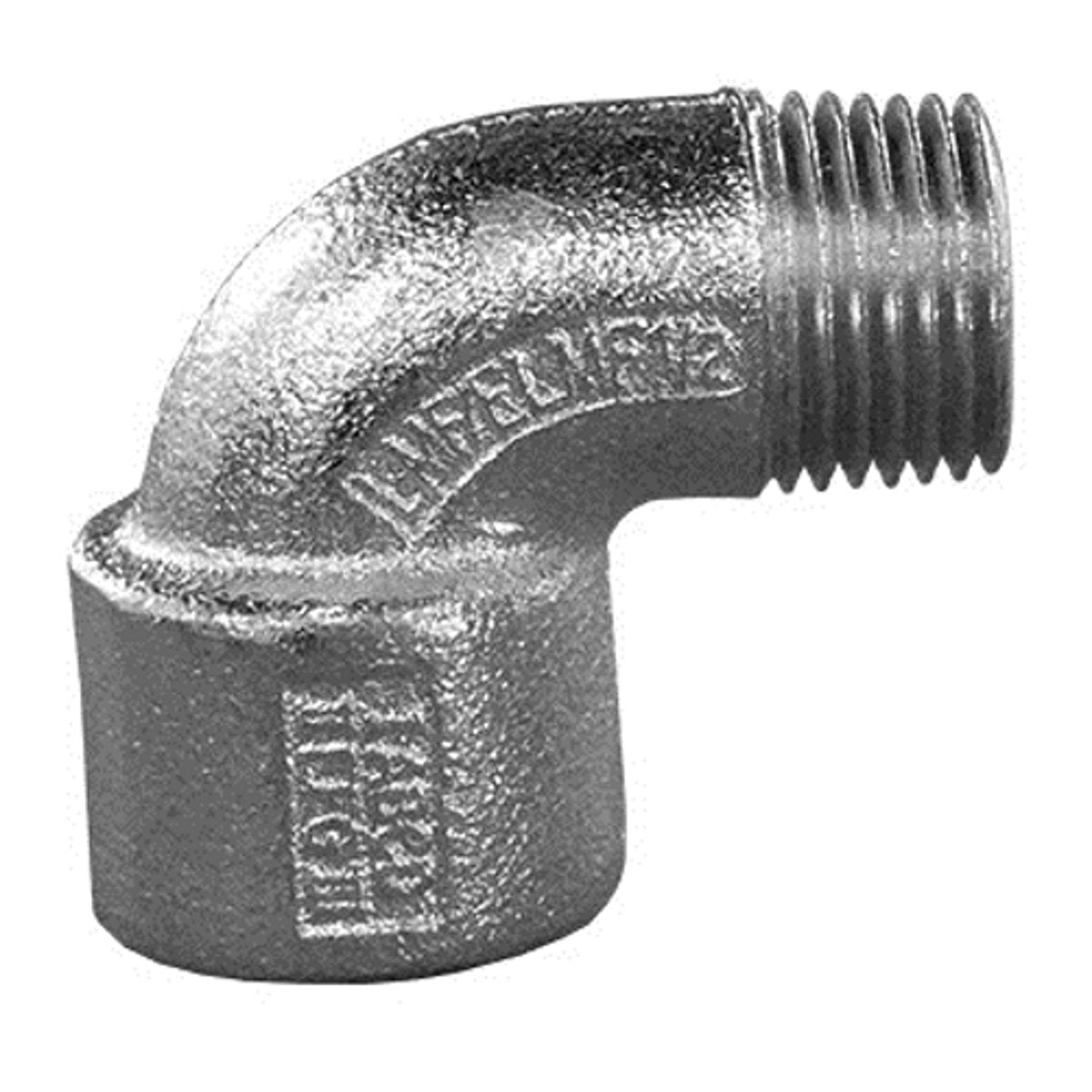

The Appleton ELMF90-100 is a 90-degree male to female elbow made from malleable iron. It is designed for use with threaded rigid metal conduit and intermediate metal conduit. The elbow features a zinc electroplated finish which provides corrosion resistance. The connection type includes tapered male NPT and tapered female NPT. This customizable elbow allows for joins at fixed angles of 45 or 90 degrees as required for various installations.

• Material: Malleable Iron ASTM A47-77
• Trade Size: 1 Inch
• Standards: UL 886 and CSA C22.2

Product Highlights

This elbow is suitable for use in hazardous locations and is explosionproof and dust-ignitionproof.

Product Information

Standard Information

• Brand: Appleton
• Catalog Number: ELMF90-100

Technical Specifications

• Finish: Zinc Electroplate
• Flexibility: Rigid And IMC
• Connection: Tapered MNPT X Tapered FNPT
• Application: For Use With Threaded Rigid Metal Conduit And IMC
• Country of Origin: Mexico
• Manufacturer: Appleton Electric
• Special Features: Smooth, rounded integral bushing in each hub protects conductor insulation
• UPC: 781381294850
