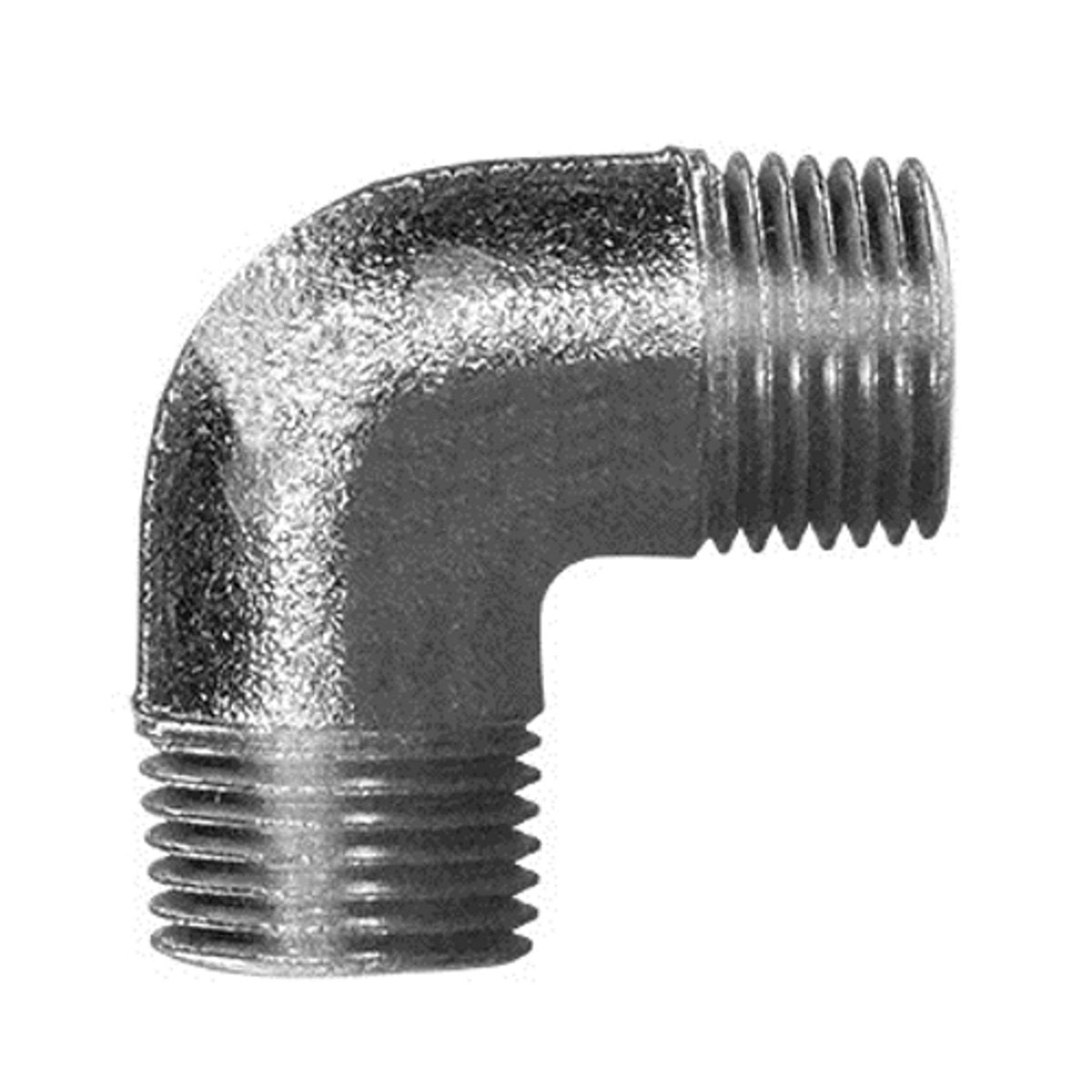

Appleton ELM90-50 90 Degree Male Conduit Elbow

Product Description

The Appleton ELM90-50 is a 90 degree male conduit elbow designed for use with threaded rigid metal conduit and IMC. Ideal for creating bends in installations, this fitting features a tapered MNPT connection and is constructed of malleable iron with a zinc electroplated finish. The unit complies with UL and CSA standards and provides durable, secure joints for various electrical applications.

• Material: Malleable Iron ASTM A47-77
• Finish: Zinc Electroplate
• Trade Size: One half inch

Product Highlights

This fitting is suitable for use in hazardous locations and provides reliable connections in electrical systems. The explosionproof design ensures safety in challenging environments.

Product Information

Standard Information

• Product ID: 81626
• Brand: Appleton Electric

Technical Specifications

• Catalog Number: ELM90-50
• Connection: Tapered MNPT
• Flexibility: Rigid and IMC
• Dimension A: One and one half inches
• Approval: UL 886, CSA C22.2 No.
• Special Features: Explosionproof, dust-ignitionproof; integrated bushing protects insulation
• UPC: 78138129455
• Country of Origin: Mexico
