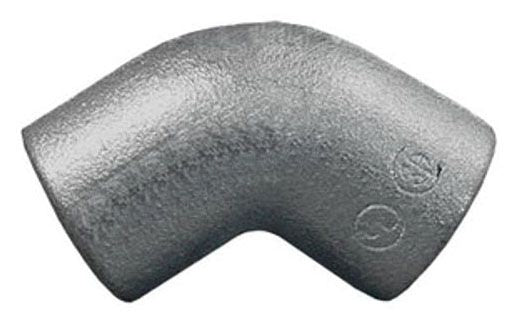

Appleton ELF45-50 1/2 Inch 45 Degree Female Elbow Fitting

Product Description

The APPLETON ELF45-50 is a 1/2 inch 45-degree female elbow conduit fitting designed for use in electrical raceway systems. This fitting redirects conduit runs at a 45-degree angle using a female thread connection, allowing for clean, code-compliant routing in tight or angular installation spaces. It is suited for use by licensed electricians in commercial and industrial conduit installations where directional changes are required without the sharp bend of a 90-degree elbow.

This fitting is commonly installed in EMT or rigid conduit systems where space constraints or structural elements require an angled conduit transition. The 1/2 inch trade size makes it appropriate for smaller branch circuit or low-voltage conduit runs in both new construction and retrofit applications. Electricians working on panel feeds, junction box connections, or exposed conduit routing will find this a standard-use component.

Key Features

• 45-degree angle provides a gradual directional change for conduit routing
• Female thread connection for secure, tool-tight conduit assembly
• 1/2 inch trade size fits standard 1/2 inch conduit
• Compact form factor suited for installations with limited clearance

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1/2 inch trade size conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits in the work area before beginning conduit work. Use appropriate thread sealant or conduit wrench as required for a secure, weathertight connection. Do not over-tighten fittings, as this may damage threads or distort the fitting body.

Technical Specifications

• Trade Size: 1/2 inch
• Angle: 45 degrees
• Connection Type: Female thread
• UPC: 78138129380

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ELF45-50
