Appleton ELBY-75 90 Degree Capped Pulling Elbow 3/4 Inch

Product Description

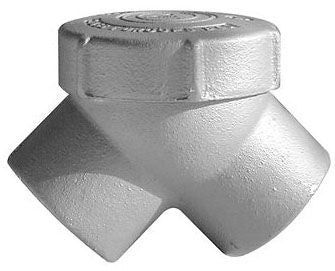

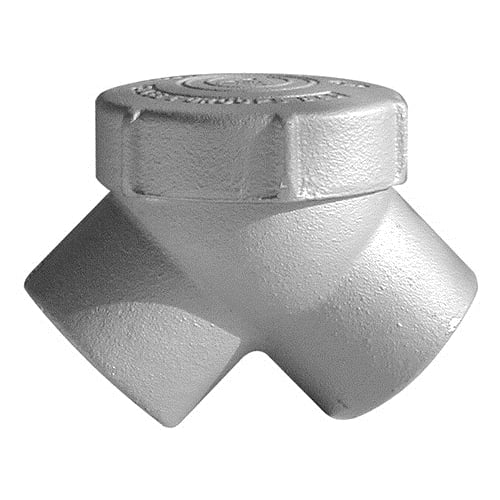

The Appleton ELBY-75 is a 90-degree capped pulling elbow designed for use with rigid metal conduit. This product features a female threaded connection and is made from durable malleable iron. It is ideal for applications that require a bend in the conduit run while allowing access for pulling conductors.

• Material: Malleable Iron
• Trade Size: 3/4 Inch
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)

Product Highlights

The ELBY-75 is specifically designed for flexibility in conduit installations. It allows for easy access to conductors and provides a secure connection for conduit fittings. Its explosion-proof and dust-ignition-proof design make it suitable for hazardous locations.

Product Information

Standard Information

• Catalog Number: ELBY-75
• Manufacturer: Appleton Electric

Technical Specifications

• Length: 2.88 inches
• Connection: Female threaded
• Flexibility: EMT
• Special Features: Serves as pulling fitting; Makes 90-degree bend in conduit runs; Permits easy access to pulling conductors; Easily removable covers; Explosion-proof, dust-ignition-proof
• Standards: UL 886, UL File Number E10444, CSA C22.2 No. 30
• Country of Origin: Mexico
• UPC: 781381293655
