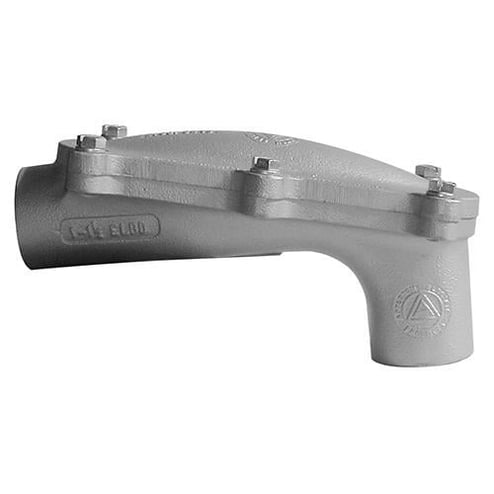

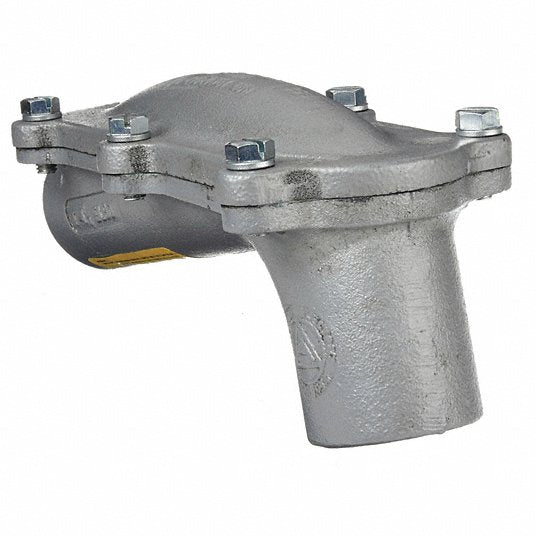

Appleton ELBD125 1-1/4 inches 90D Pulling Elbow

Product Description

The Appleton ELBD125 is a 1-1/4" 90D pulling elbow. This UNILETS conduit elbow is dust-ignitionproof, explosionproof, and raintight. It is designed for use with threaded metallic conduit and features a triple-coated malleable iron construction.

• Serves as pulling fitting
• Makes 90 deg bend in conduit runs
• Built in rollers to facilitate cable pulling

Product Highlights

The ELBD125 elbow provides easy access to conductors with easily removable covers and a chromate/epoxy powder coated/zinc electroplated finish.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ELBD125
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number #: ELBD125
• SKU #: 2339688
• Series: ELBD
• Suitable For Use With: Threaded Metallic Conduit
• Type: Dust-Ignitionproof Explosionproof Pulling Raintight
• UNSPSC: 39131717
• UPC: 00781381293259
• Application: For Use With Metal Conduit
• Connection: Female Threaded
• Country of Origin: MX
• Finish: Triple Coated
• Material: Malleable Iron
• Special Features: Built in rollers to facilitate cable pulling Chromate/epoxy powder coated/zinc electroplated finish Easily removable covers Makes 90 deg bend in conduit runs Permits easy access to pulling conductors Serves as pulling fitting
• Standard: UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III
• Sub_Brand: Appleton
• Trade_Size: 1-1/4
• Thread Gender: Female to Female
• Ends - Hazardous Fittings: 1-1/4 in FNPT x 1-1/4 in FNPT
• Overall Length: 1-1/4 in
• Hazardous Location Rating: Class I, Division 1 and 2, Group D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Conduit Fitting Type: Elbow
• Connection Orientation: 90
• Connection Type: Threaded
• Manufacturer Part Number: ELBD-125
