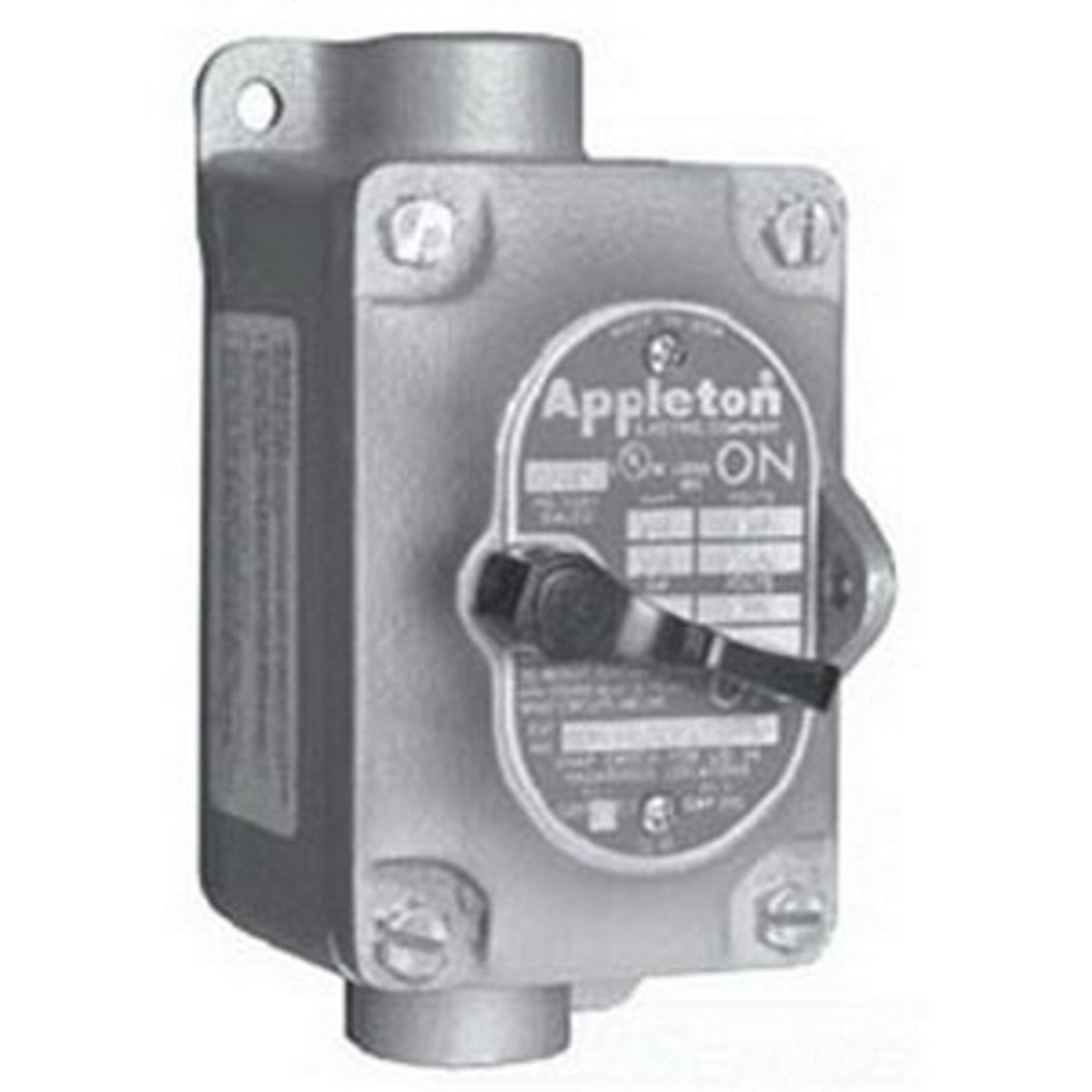

Appleton EFSC175-F3W 3-Way 1-Gang 20A Switch

Product Description

Appleton produces the EFSC175-F3W, a 3-way switch rated for 20 amps. This switch operates at a voltage range of one hundred twenty to two hundred seventy-seven volts. It is designed for surface mounting with a three-quarter inch feed-thru hub. The enclosure meets NEMA 7CD and 9EFG standards, making it suitable for classified areas where flammable gases or ignitable dusts are present.

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 20 Amps
• Enclosure Material: Malleable Iron

Product Highlights

This switch is built to handle environments where ignition risks exist. It features a durable malleable iron body with a nylon handle for reliable operation. The design prevents arcing during use, ensuring safety in hazardous conditions.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EFSC175-F3W
• Operator Type: Front Operated Lever
• Hub Size: 3/4 Inch
• Enclosure: NEMA 7CD, 9EFG
• Dimensions: Height: 4.63 inches, Width: 3 inches, Depth: 4.53 inches
• Standards: UL 894, UL 1203
• Application: For use in classified areas with ignitable vapors
