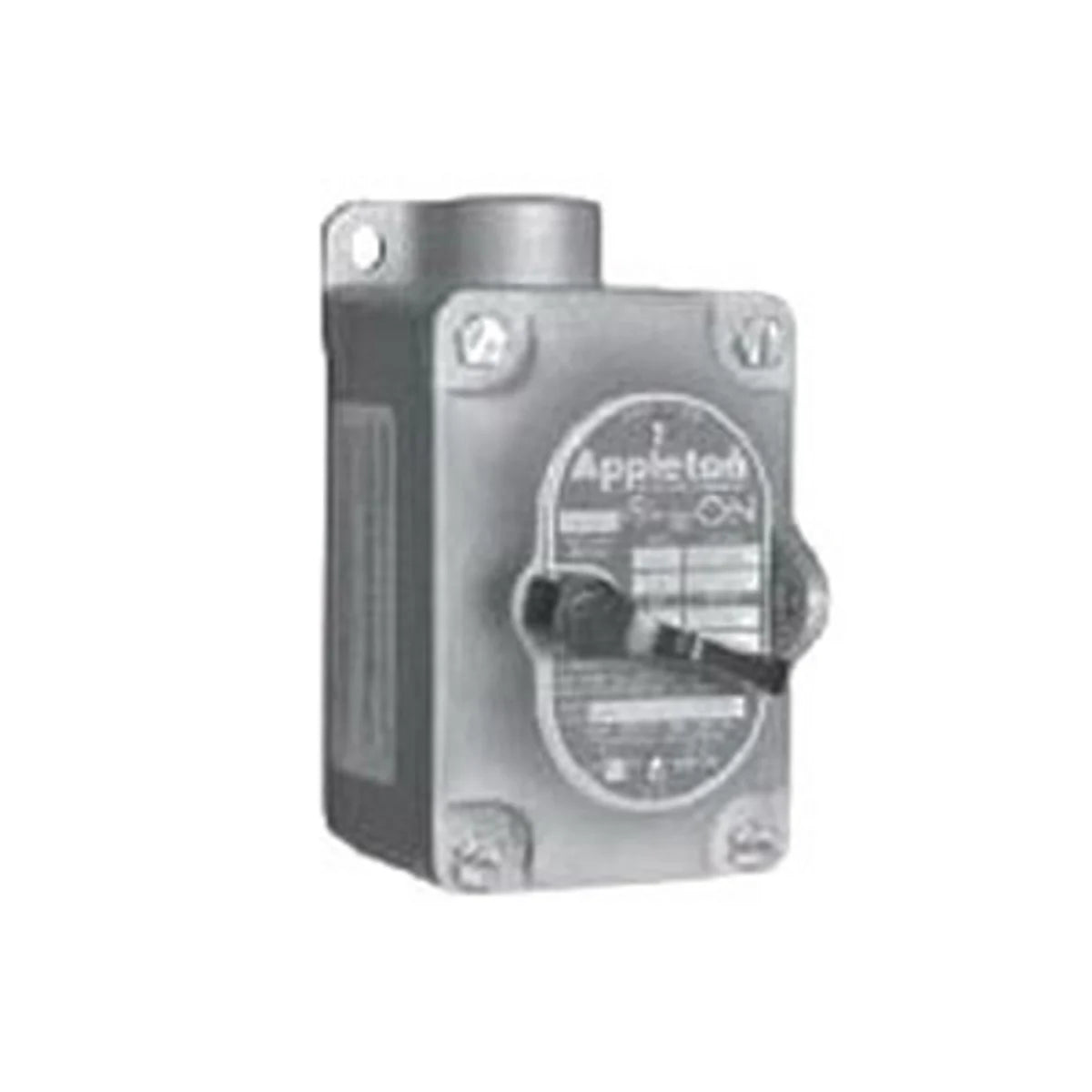

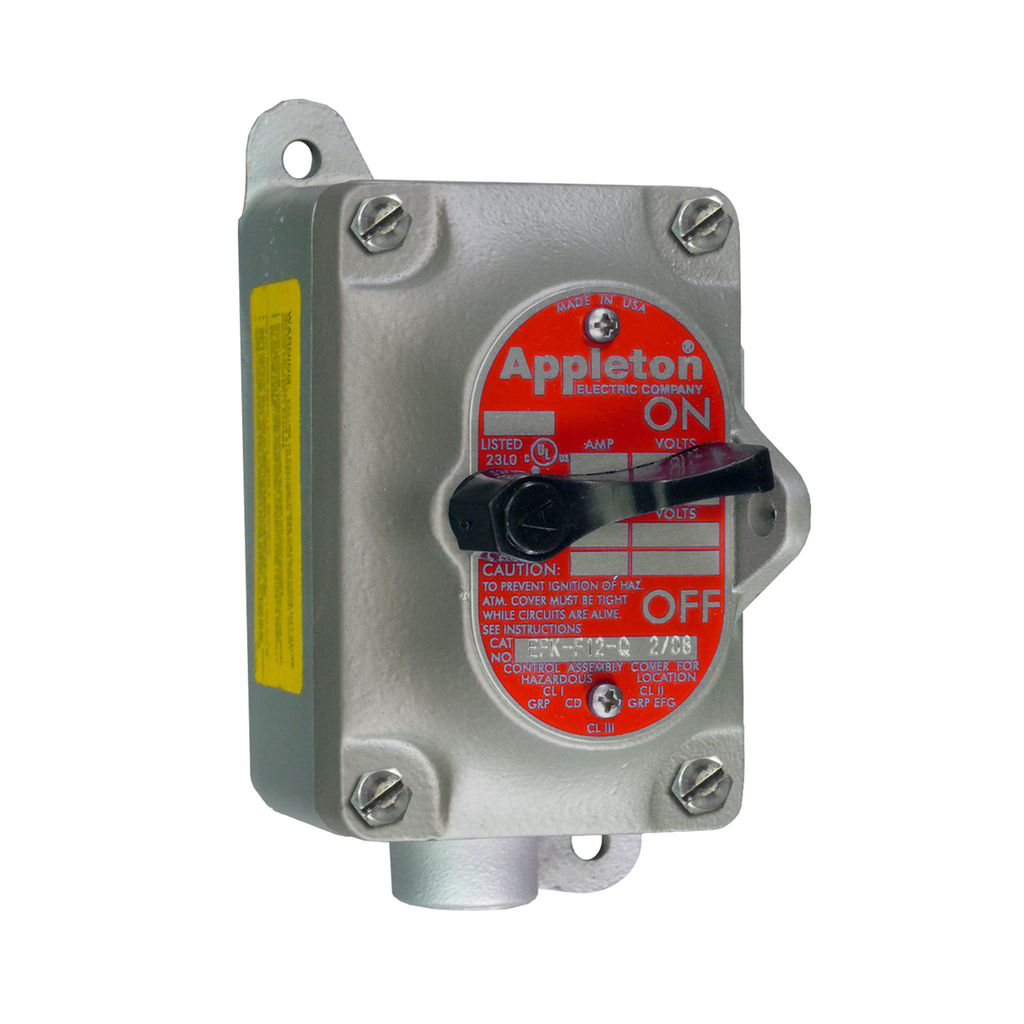

Appleton EFSC175-F1 3/4 Explosion Proof Switch

Product Description

The Appleton EFSC175-F1 is a 3/4 explosion-proof switch designed for tough environments. This EFS Series switch is ideal for use in chemical and petrochemical facilities, refineries, and other industrial settings where hazardous conditions are present. Its design prevents arcing during connect and disconnect operations of lighting and light power loads.

• Explosionproof and dust-ignitionproof.
• Constructed for environments with ignitable vapors and dust.
• Designed for surface mounting with external lugs for easy installation.

Product Highlights

This switch features a robust construction with a malleable iron enclosure, ensuring durability and safety in hazardous locations.

Product Information

Standard Information

• Brand: Appleton
• MPN: EFSC175-F1

Technical Specifications

• Voltage Rating: 120 - 277 Volt AC
• Amperage Rating: 20 Amp
• Number of Poles: 1
• Actuator Type: Front Operated
• Enclosure Type: NEMA 7CD, 9EFG
• Mounting Type: Surface Mount with 3/4 Inch Feed-Thru Hub
• Construction Material: Malleable Iron
• Application: For arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
