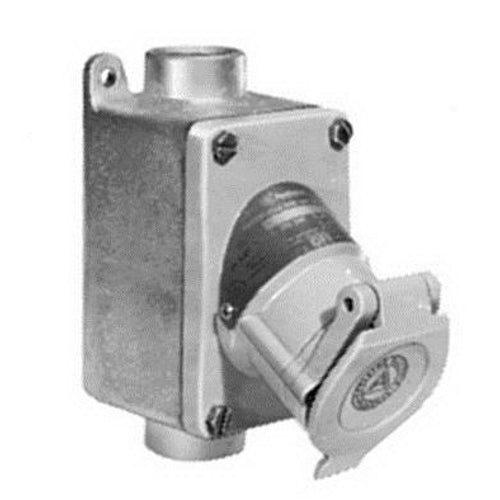

Appleton EFSC175-2023 Explosionproof Receptacle Assembly 125 VAC 20 A 1 HP NEMA 3/3R

Product Description

The Appleton EFSC175-2023 is an explosionproof receptacle assembly designed for safety in hazardous environments. It features a feed-through design suitable for various applications. It operates on one hundred twenty-five volts alternating current and can handle up to twenty amps, making it ideal for lighting systems and similar equipment.

• Explosionproof and dust-ignitionproof design
• Suitable for use with ECP and NCP mating plugs
• Meets UL and CSA standards for safety

Product Highlights

This receptacle assembly is built from copper-free aluminum with a malleable iron mounting box. It is rated for NEMA 3 and NEMA 3R, making it suitable for outdoor applications. Its surface mount design includes a three-quarter inch feed-thru hub, allowing for easy installation in various settings.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: EFSC175-2023

Technical Specifications

• Amperage Rating: 20
• Voltage Rating: 125 VAC
• Number of Poles: 3
• Number of Wires: 2
• Material: Copper-free aluminum
• Mounting: Surface with 3/4 inch feed-thru hub
• Dimensions: 6.13 inches H x 3 inches W x 5.69 inches D
• NEMA Rating: 3, 3R
