Appleton EFDCL10-Q 3-Device Body 1 Feed Thru

Product Description

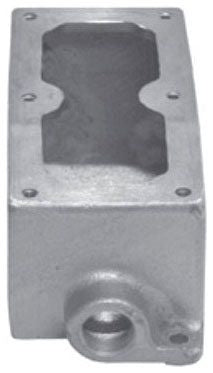

Appleton EFDCL10-Q is a three-device control station body designed for feed-thru applications. This product is suitable for various industrial settings. It is constructed from zinc electroplated dichromate epoxy powder-coated malleable iron, ensuring durability and resistance to harsh environments.

• Feed through type ensures flexible wiring options.
• Compact dimensions of three point five inches wide and nine point thirty-one inches high.
• Designed for use with EFD/EDS series factory-sealed controls.

Product Highlights

This control station is built for heavy-duty applications, providing a reliable interface for motor control and other electrical systems.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Zinc electroplated dichromate epoxy powder-coated malleable iron

Technical Specifications

• Item Type: Feed through
• Size: Three point five inches wide x nine point thirty-one inches high
• Hub Size: One inch
• Number of Hubs: Two
• Enclosure Rating: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Mounting Method: Lug
• Catalog Number: EFDCL10-Q
• UPC: 78138110633
