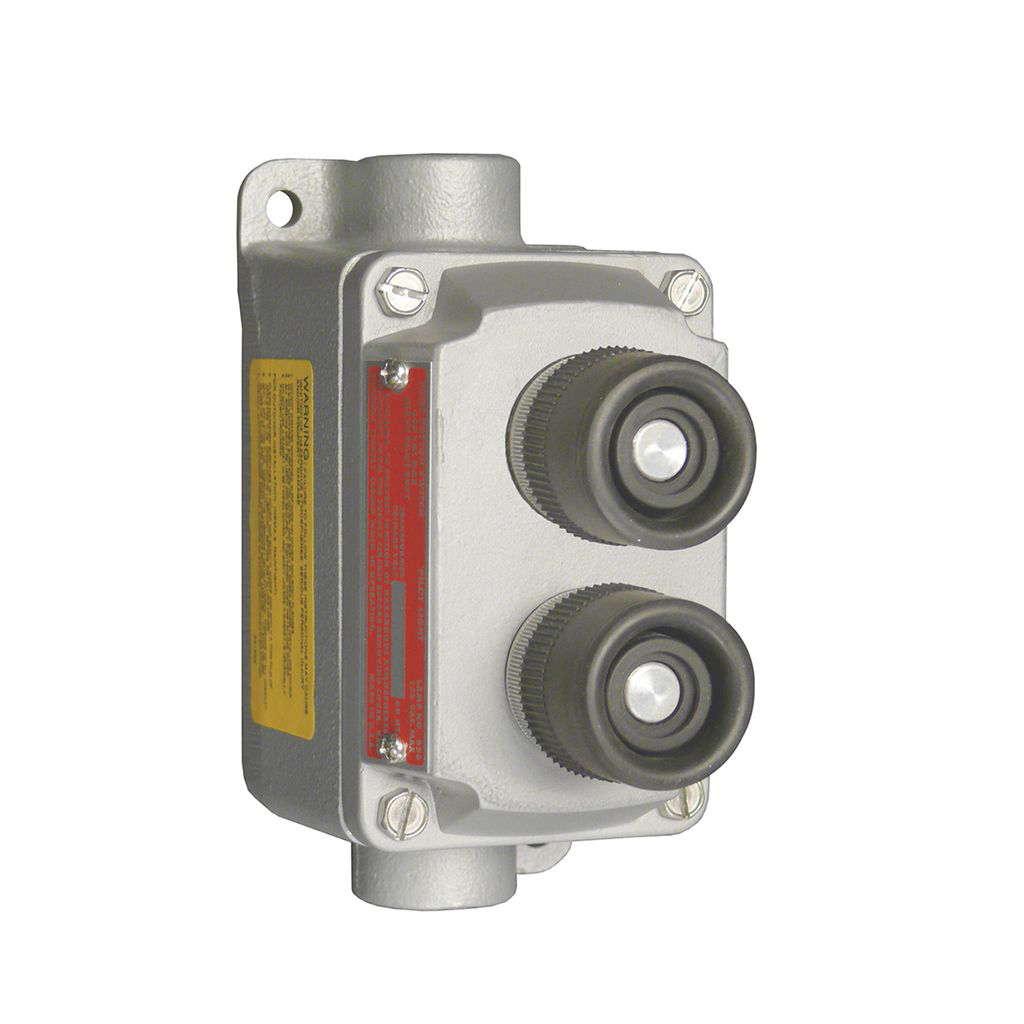

Appleton EFDC175A-NL-Q EFD Mounting No O 3/4 IN

Product Description

The Appleton EFDC175A-NL-Q is a 3/4 inch feed through mounting body designed for safe operation in hazardous environments. This product is ideal for classified areas where flammable vapors and combustible dusts may be present. It features a combination of push button and selector switch options, allowing remote control of motors and other equipment. Its design restricts device arcing within the enclosure, preventing potential ignition during operation.

• Explosionproof, Dust-Ignitionproof
• Factory sealed, eliminating need for sealing fittings
• High thermal and arc resistance for reliable performance

Product Highlights

This mounting body is constructed of aluminum and meets UL standards for safe use in diverse industrial applications. It is suitable for installation in chemical plants and refineries, ensuring consistent operation in severe conditions.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EFDC175A-NL-Q
• Material: Aluminum
• Size: 3/4 Inch
• Hub Entry: (2) 3/4 Inch
• Mounting Style: Lugs
• Weight: 1.3 lbs
• Enclosure Rating: NEMA 7CD, 9EFG
• Standards: UL 508, 698, 1203
