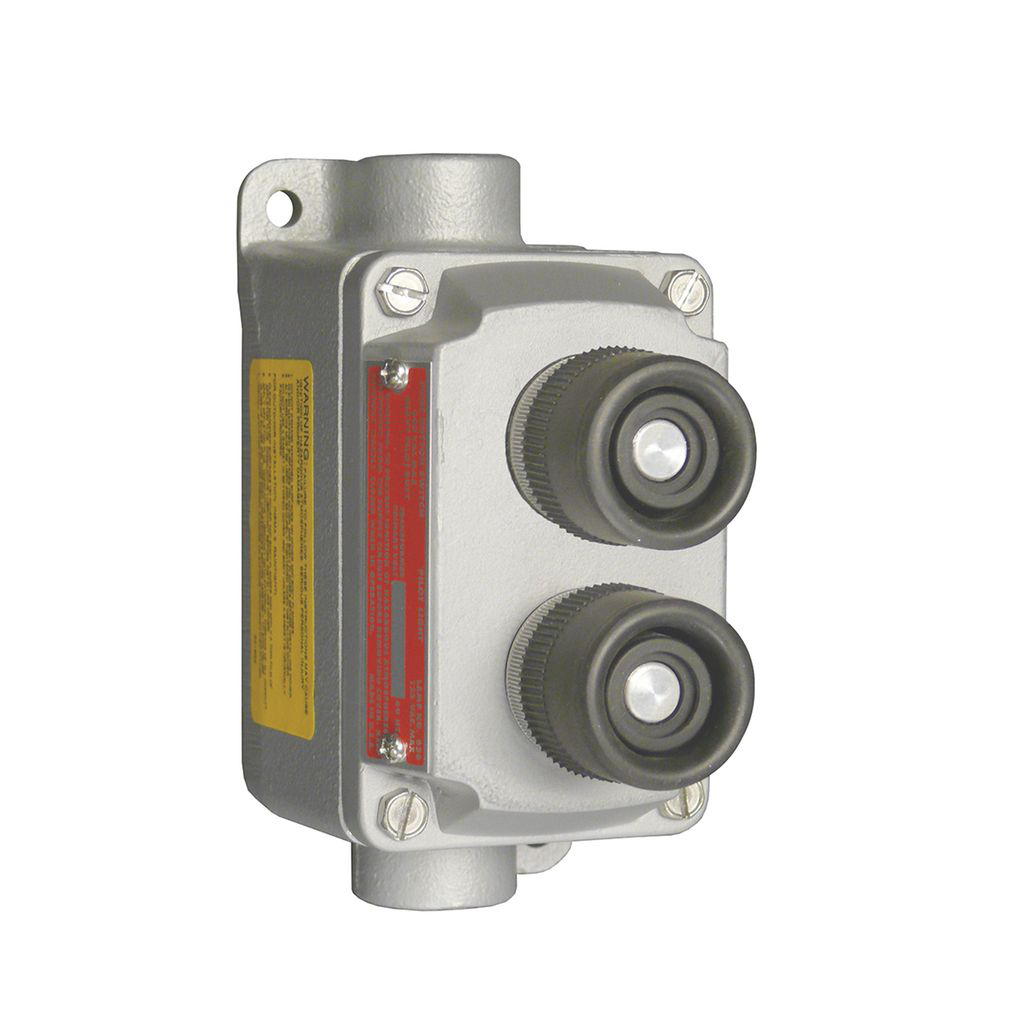

Appleton EFD175-NL-Q 3/4 Inch EFD 1-Gang Unilet

Product Description

Appleton EFD175-NL-Q is a factory sealed control station that provides protection in environments where flammable vapors, gases, or highly combustible dusts are present. This control station is designed to confine arcing of devices within its enclosure, reducing the risk of ignition during the operation of motors and other equipment. It accommodates various push buttons and selector switches, which can be paired with contactors or magnetic starters for remote motor control. Additionally, pilot lights offer visual indicators of electrical functions at both remote and local locations.

• Explosionproof and dust-ignitionproof design
• Equipped with factory sealing, eliminating the need for additional sealing fittings
• Compatible with multiple applications in chemical and petrochemical industries

Product Highlights

Appleton EFD175-NL-Q is ideal for hazardous locations and ensures safe operation in demanding environments.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: EFD175-NL-Q

Technical Specifications

• Material: Malleable Iron
• Size: 3/4 inch hub
• Type: 1-Gang Dead-End Mounting Box
• Mounting: Lugs
• Width: 3 inches
• Height: 6.38 inches
• UPC: 78138127085
• Application: Suitable for use with U-Line 20 AMP Receptacles, EDS Series Factory Sealed Manual Motor Starters, and more.
