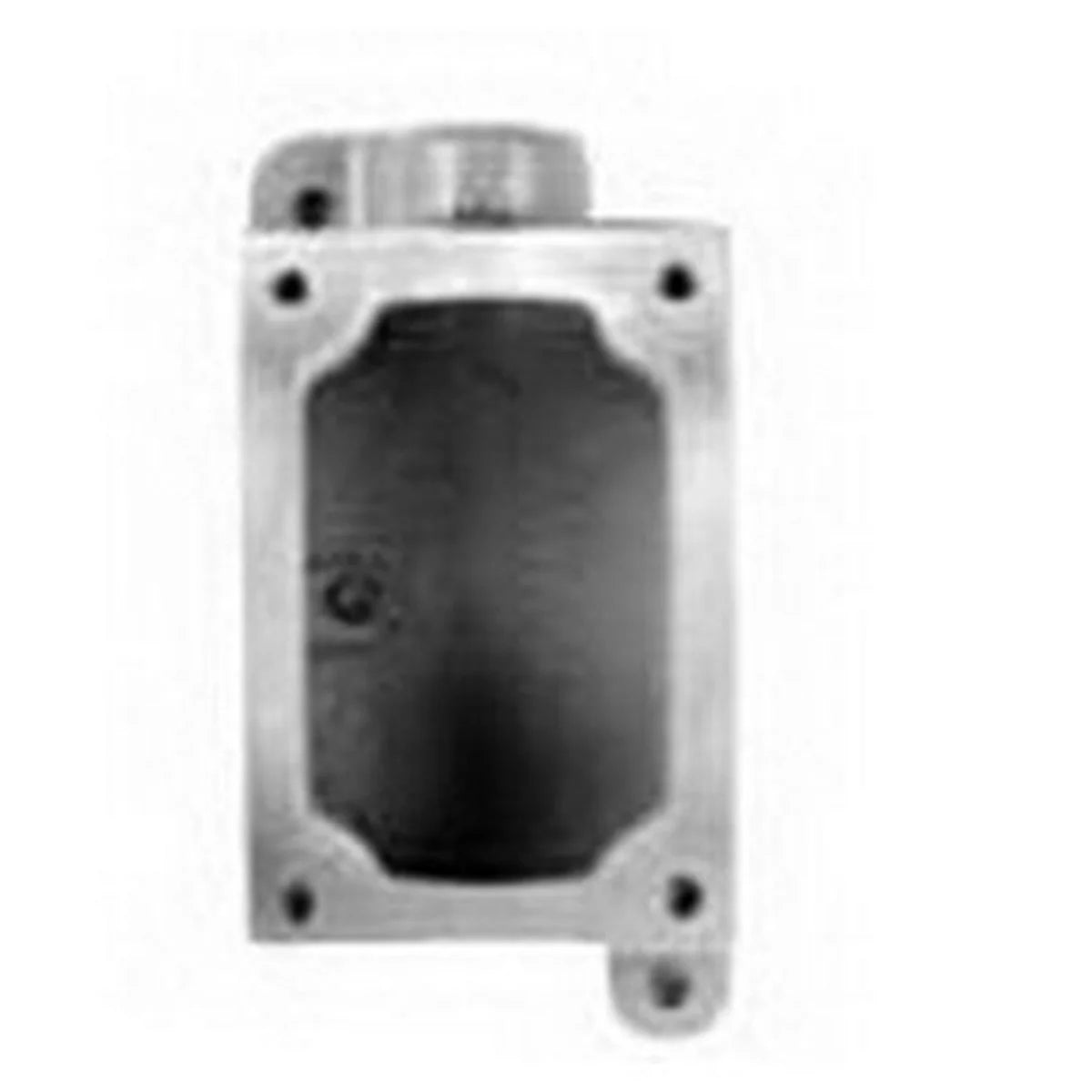

Appleton EDSC271 Feed-Through Electrical Box With Internal Ground Screw Malleable Iron 1 Gang 2 Outlets 2 Knockouts

Product Description

The Appleton EDSC271 is a feed-through electrical box designed for various electrical applications. This box is made from durable malleable iron and accommodates up to two outlets. It features two 3/4 inch hubs for cable entry, making it suitable for a range of installations. The EDSC271 is compliant with UL standards, ensuring reliability and safety in hazardous locations.

• Material: Malleable Iron
• Number of Gangs: 1
• Application: For use with Contender Series Tumbler Switches, CPS 20 AMP Factory Sealed Receptacles, and U-Line 20 AMP Receptacles

Product Highlights

The Appleton EDSC271 features a powder-coated finish for corrosion resistance and includes a ground screw for reliable grounding.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: EDSC271

Technical Specifications

• Material: Malleable Iron
• Mounting Type: Lug
• Dimensions: Six point eight one inches high x three point seven two inches wide x three point zero five inches deep
• Number of Outlets: 2
• Number of Knockouts: 2
• Standards: UL 508, 943, 1203, E10449, E81751, Class I/Class II/Class III, Division 1 and 2
• Country of Origin: Mexico
• Special Features: Large backbox for ample wiring room; factory sealed enclosure eliminates need for sealing fittings and compound
