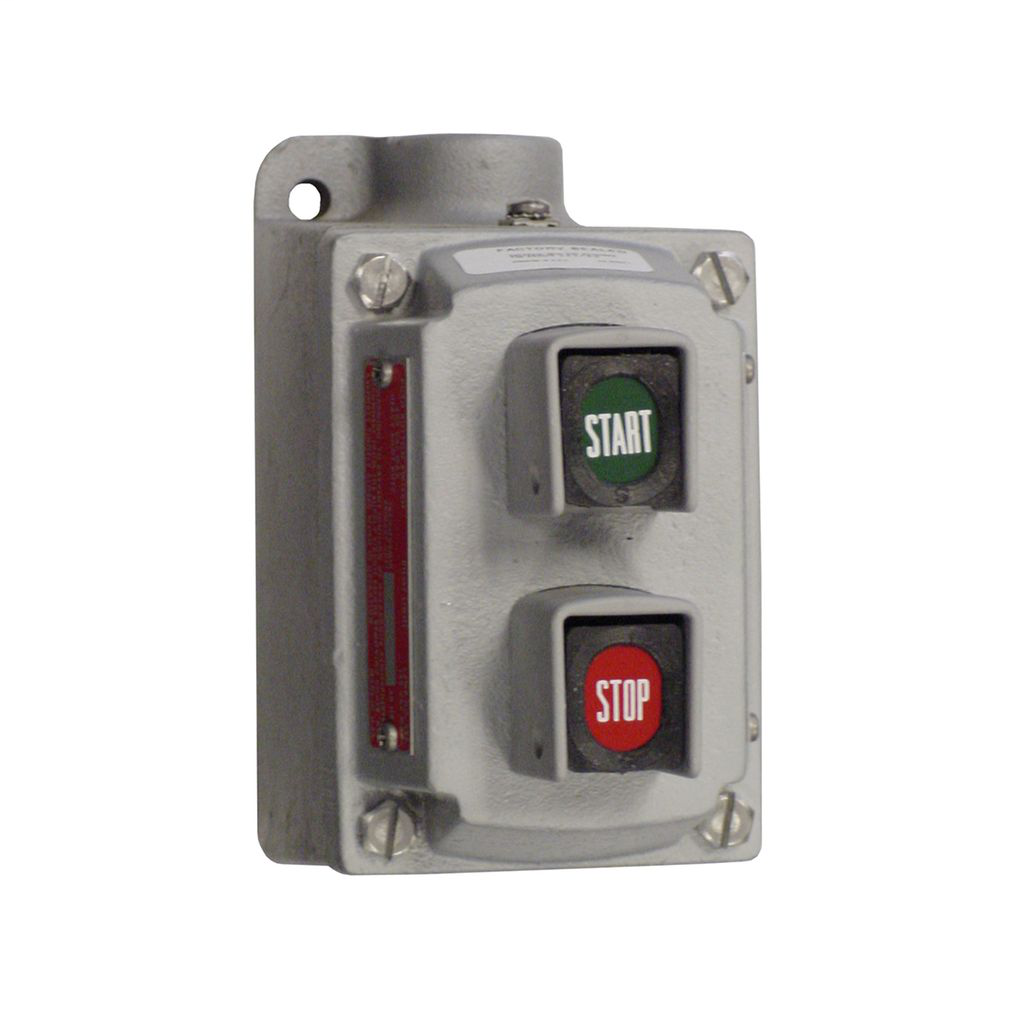

Appleton EDSC2190 EXPLOSIONPROOF CONTROL STATION 1-GANG 2 CIRCUIT PUSH BUTTON SWITCH

Product Description

The Appleton EDSC2190 explosionproof control station is a part of the Contender Series and is designed for use in hazardous environments. This unit confines arcing within its enclosure to prevent ignition during control operations. Ideal for controlling motors and other electrical equipment, it features multiple push buttons and selector switches.

• Explosionproof and dust-ignitionproof design.
• Factory sealed, reducing the need for additional sealing fittings.
• Available options for push buttons and pilot lights.

Product Highlights

Designed for classified areas with flammable vapors or combustible dust, the Appleton EDSC2190 provides reliable remote control over motors.

Product Information

Standard Information

• Brand: Appleton
• MPN: EDSC2190

Technical Specifications

• Type: EDSC Series 1-Gang 2 Circuit Push Button Switch
• Actuator: Front Operated
• Contact Rating: 10 AMP at 600 VAC
• Contact Configuration: 2 NO/2 NC
• Enclosure: NEMA 3, 7CD, 9EFG
• Weight: 10.7 lbs
• Mounting: Surface mount with 3/4 inch feed-thru hub
• Application: For remote control of motors
