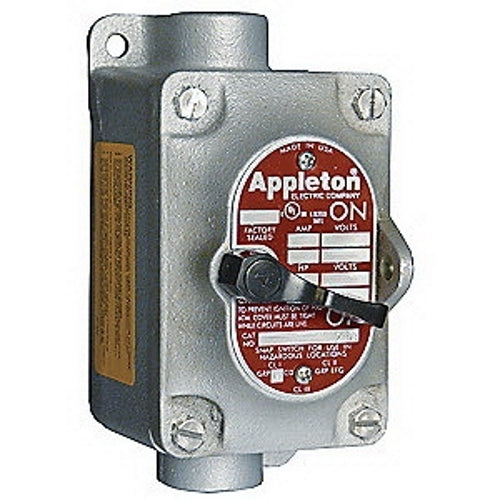

Appleton EDSC2129 1-G 3/4 Snap Switch STA-FS

Product Description

Appleton EDSC2129 is a 1-gang tumbler switch designed for surface mounting. It operates with a voltage rating of one hundred twenty to two hundred seventy-seven volts AC and supports an amperage rating of twenty amps. This device features a single pole, making it suitable for simple on/off control applications. The switch comes with a NEMA three enclosure, ensuring protection in various environments.

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 20 AMP
• NEMA 3 Enclosure

Product Highlights

Ideal for use in environments with potential ignition risks, this switch is built to withstand harsh conditions. The construction includes an external mounting hub and provision for padlocking in both positions.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EDSC2129
• Application: For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
• Country of Origin: Mexico
• Mounting Type: Surface Mount with 3/4 inch feed-thru hub
• Special Features: Corrosion resistant; pad lockable in the on or off position; designed to prevent arcing in ignitable atmospheres
• Electrical Ratings: Voltage 120 - 277 VAC, Amperage 20 AMP, Number of Poles 1
• Standards: UL 894, UL 1203
