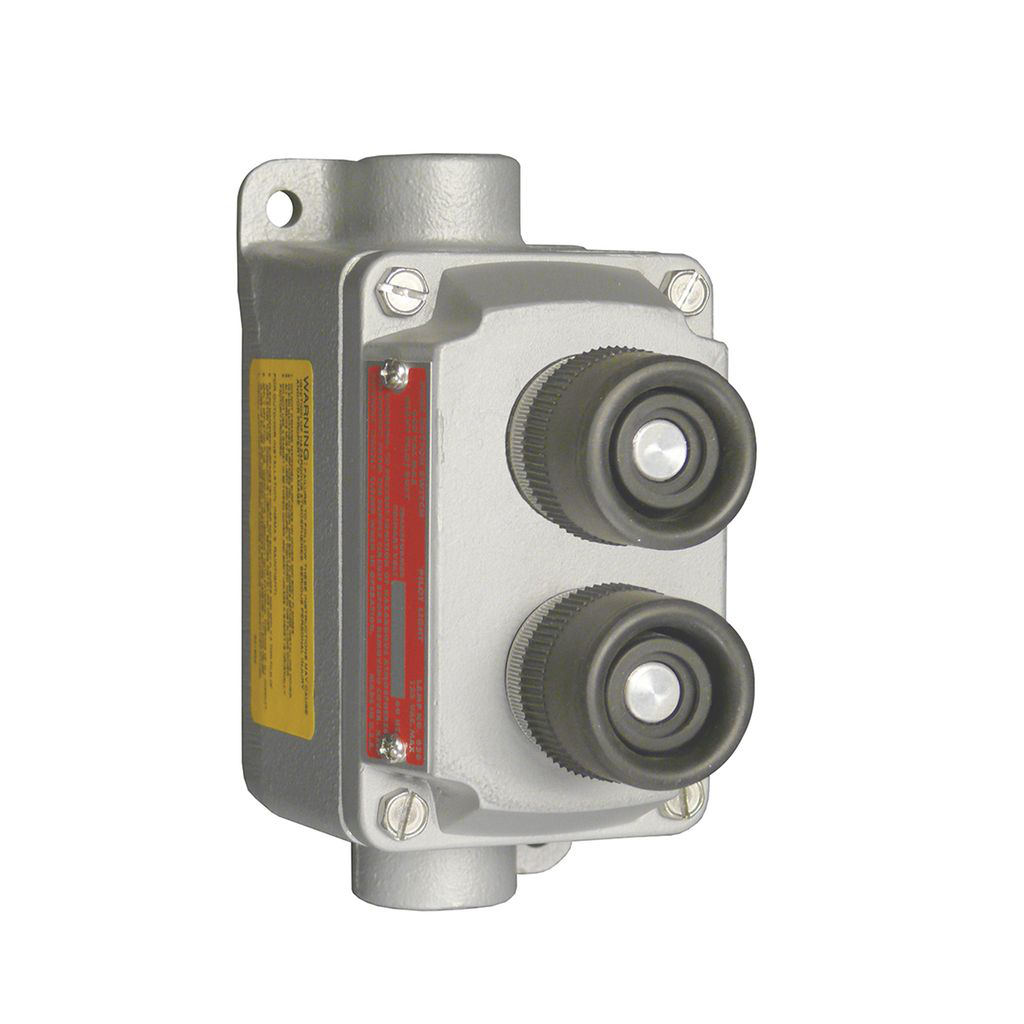

Appleton EDSC175-RU2 Factory Sealed PB S

Product Description

The Appleton EDSC175-RU2 is a factory sealed explosion-proof push button station designed to operate in hazardous locations. This product efficiently confines arcing devices, thus preventing potential ignition in flammable environments. It features versatile push buttons and selector switches for seamless control of motors and equipment. Ideal for chemical and petrochemical facilities, the enclosed design protects against dust and moisture.

• Explosion-proof and dust-ignitionproof
• Factory sealed to eliminate additional sealing fittings
• Includes pilot lights for visual confirmation

Product Highlights

This control station is suited for classified areas with flammable vapors and combustible dust.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EDSC175-RU2
• Contact Configuration: 2 NO/2 NC
• Contact Rating: 10 AMP at 600 VAC
• Actuator: Rocker Arm
• Enclosure: NEMA 3, 7CD, 9EFG
• Mounting: Surface Mount with 3/4-inch feed-thru hub
• Country of Origin: Mexico
• Approval: UL 508, 698, 1203
