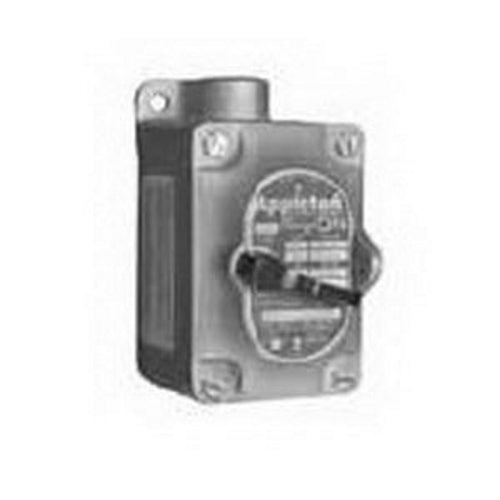

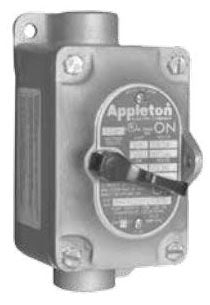

Appleton EDSC175-F2 Factory Sealed Switch 120 to 277 VAC 20 Amp

Product Description

The Appleton EDSC175-F2 is a factory sealed tumbler switch designed for operation in hazardous locations. It is rated for voltages of 120 to 277 VAC and supports a maximum current of 20 Amps. This switch is ideal for environments with ignitable vapors, gases, and dust, commonly found in chemical plants and refineries.

• Explosionproof and dust-ignitionproof for safety in classified areas
• Constructed with copper-free aluminum and nylon for durability
• Sealed to prevent arcing, meeting UL standards to ensure safety

Product Highlights

This switch is built to handle demanding conditions while ensuring reliable operation in hazardous environments. Its durable design makes it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 20 Amp
• Number of Poles: 2 Pole
• Mounting Type: Surface Mount with 3/4 Inch Feed-Thru Hub
• Enclosure Rating: NEMA 7CD, 9EFG
• Application: For use in classified areas with ignitable atmospheres
• Material: Malleable Iron, Epoxy Powder Coated
• Actuator Type: Front Operated Lever
