Product Description

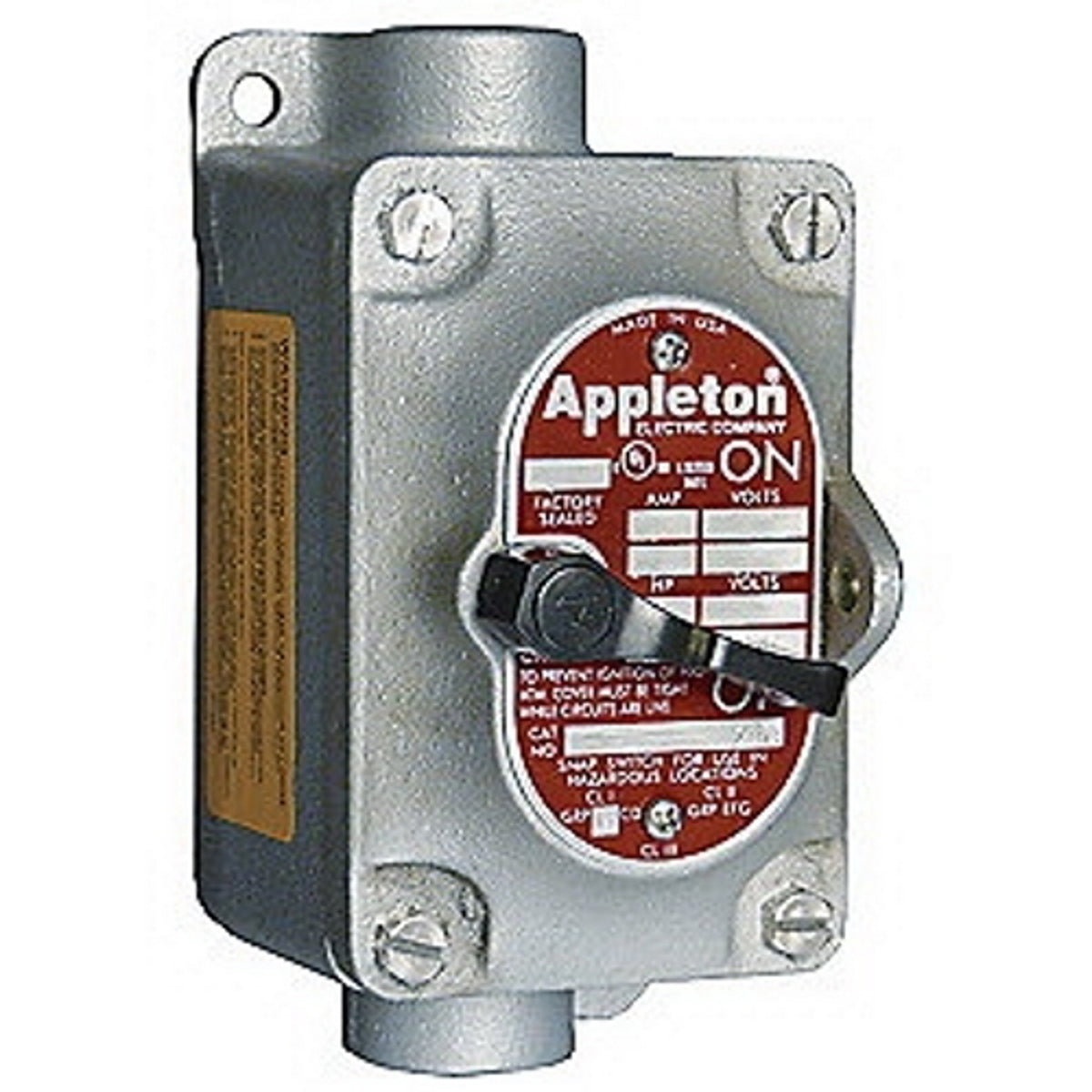

The Appleton EDSC175-F1 is a factory sealed tumbler switch designed for use in hazardous environments. This switch prevents arcing of enclosed devices, making it suitable for lighting and light power loads in classified areas. It is commonly used in chemical and petrochemical plants, refineries, and other industries prone to ignitable vapors, gases, or combustible dust.
- Explosionproof and dust-ignitionproof design
- Factory sealed for safety in hazardous areas
- Standard UL compliance for reliability
Product Highlights
This switch ensures a flame-tight operation through a robust construction that includes corrosion-resistant materials. Its actuator is front-operated for ease of use in various applications.
Product Information
Standard Information
-
Manufacturer: Appleton Electric
-
Brand: Appleton
Technical Specifications
-
Catalog Number: EDSC175-F1
-
Voltage Rating: 120 - 277 Volt AC
-
Amperage Rating: 20 Amp
-
Contact Configuration: 1-Pole
-
Enclosure Type: NEMA 7CD, 9EFG
-
Hub Size: 3/4 Inch
-
Approval: UL 894, UL 1203
-
Country of Origin: Mexico
