Appleton EDS218 1-G 3/4 SNAP SWITCH STA 120-277 VAC

Product Description

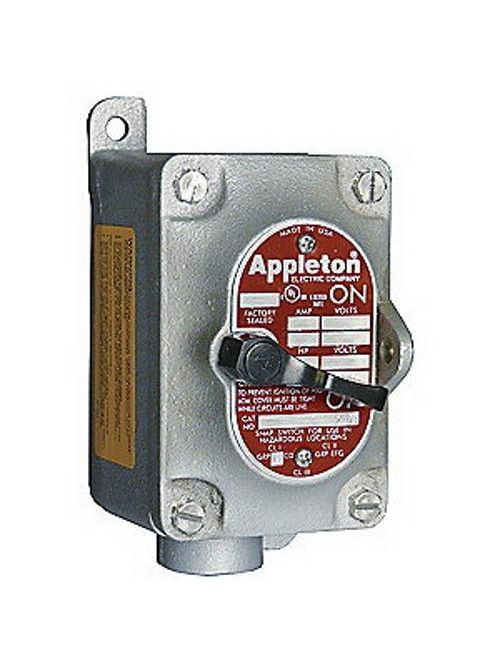

Appleton EDS218 is a durable 1-Gang tumbler switch designed for electrical control applications. It has a voltage rating of one hundred twenty to two hundred seventy-seven VAC and an amperage rating of twenty AMP. This two-pole switch is front-operated and comes in a robust NEMA 3 enclosure suitable for various environments. It is ideal for surface mounting with a three-quarter inch dead-end hub.

• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 20 AMP
• HP Rating: 1 HP at 120 VAC, 2 HP at 240 VAC

Product Highlights

The EDS218 switch is UL listed and meets several safety standards, making it suitable for use in classified areas where ignitable vapors or gases are present.

Product Information

Standard Information

• Brand: Appleton
• Model: EDS218

Technical Specifications

• Catalog Number: EDS218
• Manufacturer: Appleton Electric
• Voltage Rating: 120 - 277 VAC
• Amperage Rating: 20 AMP
• Number of Poles: 2
• Actuator: Front Operated
• Enclosure: NEMA 3, 7CD, 9EFG
• Height: 5.31 IN
• Width: 3.72 IN
• Depth: 5.31 IN
• Application: For use in classified areas where ignitable vapors, gases, or highly combustible dusts are present
• Standard Compliance: UL 894, UL 1203, E10523, E81751 UL listed
