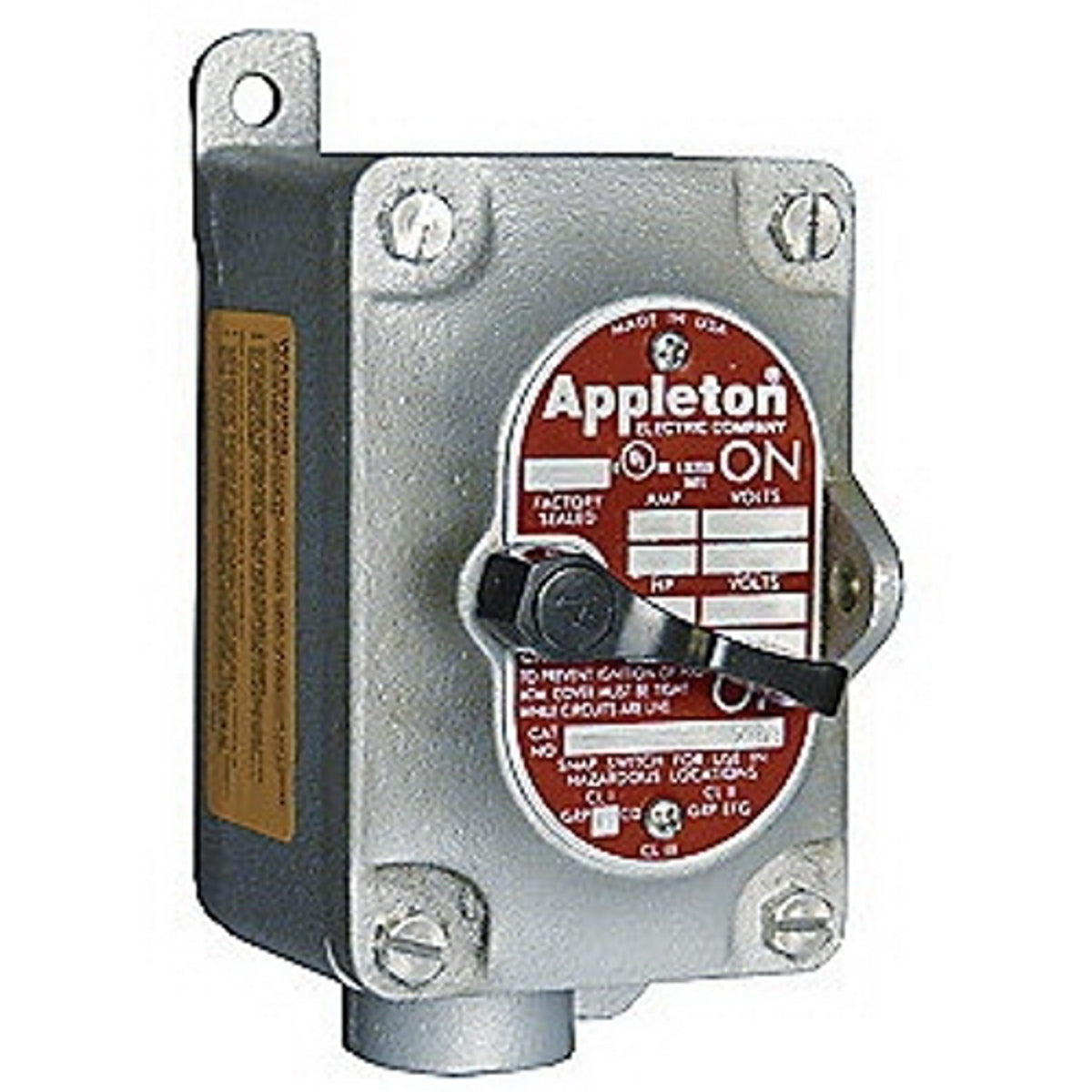

Appleton EDS2129 Tumbler Switch 20A 120/277V Surface Mount

Product Description

The Appleton EDS2129 is a tumbler switch designed for industrial use. It operates at a voltage rating of 120 to 277 volts and supports an amperage rating of twenty amps. This switch features a single pole and a front-operated actuator for easy control. The enclosure is rated NEMA three, suitable for various environmental conditions. It is mounted on the surface with a three-fourth inch dead-end hub, allowing for straightforward installation.

• Voltage Rating: 120 - 277 VAC
• Current Rating: 20 Amps
• Suitable for hazardous locations

Product Highlights

This switch is ideal for applications in classified areas where ignitable vapors, gases, or highly combustible dusts are present. It provides reliable operation and ease of access.

Product Information

Standard Information

• Brand: Appleton Electric
• MPN: EDS2129

Technical Specifications

• Catalog Number: EDS2129
• Manufacturer: Appleton Electric
• Amperage Rating: 20 Amps
• Voltage Rating: 120 - 277 VAC
• Enclosure Rating: NEMA 3, 7CD, 9EFG
• Mounting Type: Surface Mount with 3/4 IN Dead-End Hub
• Special Features: Corrosion resistant, pad lockable in both on and off position
• Application: For use in classified areas with ignitable vapors or gases
