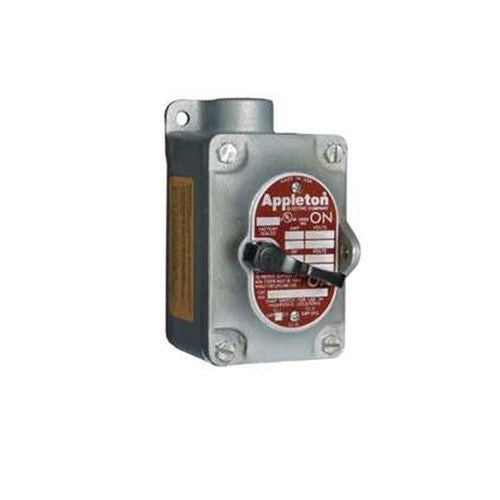

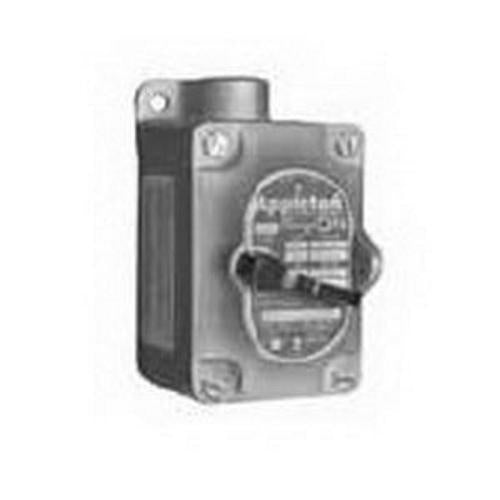

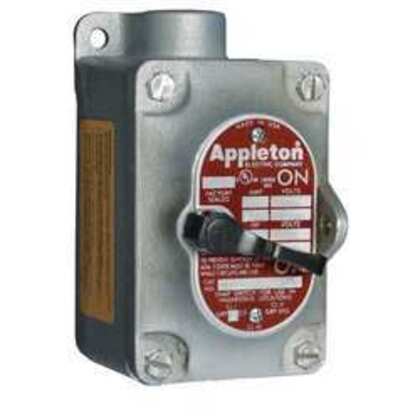

Appleton EDS175-F1 Explosionproof Tumbler Switch 120 to 277 V AC 20 A

Product Description

The Appleton EDS175-F1 explosionproof tumbler switch is a 1-gang dead end switch designed for use in classified areas. This switch is suitable for chemical plants, refineries and other process industries where ignitable vapors, gases, or highly combustible dusts are present. The tumbler switch is rated for 120 to 277 V AC and 20 A.

• Enclosures have external mounting lugs for ease of mounting
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Enclosures furnished with internal ground screw

Product Highlights

The Appleton explosionproof tumbler switch is designed to prevent arcing in hazardous environments. It is suitable for chemical plants, refineries, and other process industries.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EDS175-F1
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number #: EDS175F1
• SKU #: 2320300
• Series: EDS
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Poles: 1 Pole
• Actuator: Lever Actuator
• Connection: Thread Connection
• NEMA Rating: NEMA 7CD/9EFG
• Mounting: Surface Mounting
• Material: Malleable Iron
• Type: Tumbler Switch
• Sub Brand: UNILETS
• Application: For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: EDS175F1
• Connection Type: Threaded
• Country of Origin: MX
• Enclosure: NEMA 7CD, 9EFG
• EU RoHS Indicator: C
• Finish: Triple Coated
• Height: 3.60 in
• Length: 7.20 in
• Mounting Type: Surface
• Number Of Poles: 1
• Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III
• Standards: RoHS Compliant, UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C and D, Class II, Groups E, F, G, and Class III
• Action: ON/OFF
• Power Rating: 2 hp
