Product Description

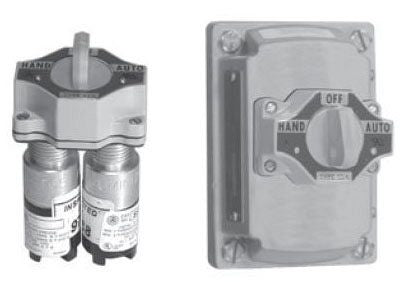

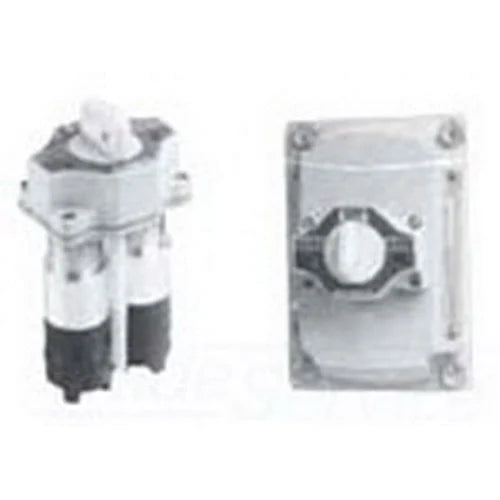

The Appleton EDKB345 Selector Switch is a durable switch designed for control applications. This unit operates at six hundred volts AC and supports a current rating of ten amperes. It features a robust design suited for use with contactors or magnetic starters for remote motor control.
- Contact configuration of two normally open and two normally closed.
- NEMA rated enclosure protects against dust and liquids.
- Designed for surface mounting with a momentary operation type.
Product Highlights
The Appleton EDKB345 switch is ideal for industrial settings, providing reliable performance and ease of installation.
Product Information
Standard Information
-
Brand: Appleton Electric
-
Catalog Number: EDKB345
Technical Specifications
-
Contact Rating: 10 AMP at 600 VAC
-
Contact Configuration: 2 NO / 2 NC
-
Number of Steps: 3
-
Enclosure: NEMA 3, 7CD, 9EFG
-
Mounting: Surface mount with half inch NPSM
-
Application: For conjunction with contactors or magnetic starters for remote control of motors
-
Country of Origin: Mexico
-
Special Features: Factory sealed enclosure; corrosion-resistant materials; guarantees reliable operation under severe conditions
