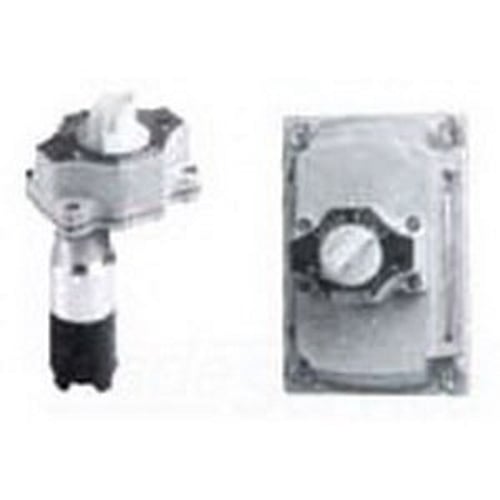

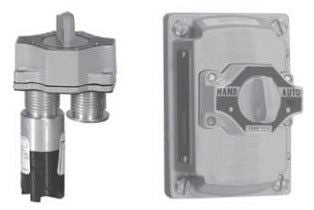

Appleton EDKB12 Selector Switch Assembly 600 VAC 10 A

Product Description

The Appleton EDKB12 is a selector switch assembly designed for reliable operation in demanding environments. This unit features a two-circuit configuration, rated for six hundred volts alternating current and a contact rating of ten amps. With a one normally open and one normally closed contact configuration, it is ideal for various industrial applications.

• Two circuit selector switch assembly
• Rated for 600 VAC at 10 A
• Designed for surface mounting in NEMA rated enclosures

Product Highlights

This selector switch is suitable for hazardous locations requiring durable and dependable control solutions.

Product Information

Standard Information

• Catalog Number: EDKB12
• Manufacturer: Appleton Electric

Technical Specifications

• Contact Configuration: 1 NO/1 NC
• Contact Rating: 10 A at 600 VAC
• Enclosure: NEMA 3, 7CD, 9EFG
• Mounting: Surface
• Special Features: Ground continuity, corrosion-resistant screws, factory sealed
• Application: Conjunction with contactors or magnetic starters for motor control
• Sub Brand: Contender
• Country of Origin: Mexico
