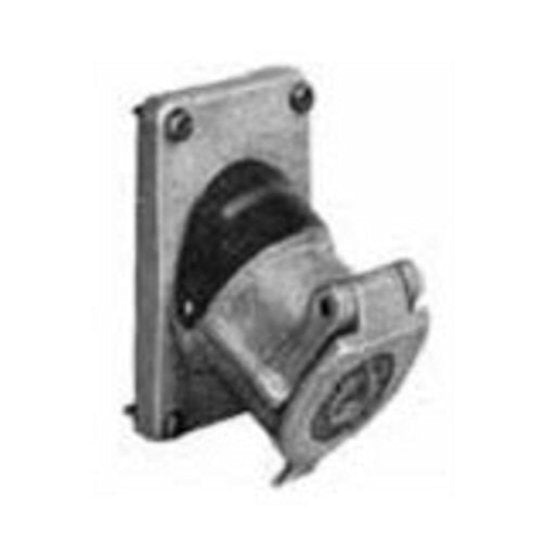

Appleton ECSK-2023 U-Line Receptacle and Cover Assembly 125 VAC

Product Description

The APPLETON ECSK-2023 is a U-Line receptacle and cover assembly designed for use with electrical equipment in hazardous locations. It features a dead front design and a neoprene gasket that seals against the plug or spring-loaded cover to keep out water, dust, and corrosive compounds. U-Line receptacles are designed so that they can't be energized by an ordinary plug.

• Explosionproof, dust-ignitionproof
• Dead-front safety construction: grounding through extra pole and shell
• Factory sealed, external seals not required, arcing is safely confined to receptacle interior

Product Highlights

This receptacle and cover assembly is ideal for use with lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, and pumps.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ECSK-2023
• Country of Origin: Canada

Technical Specifications

• Material: Copper Free Aluminum
• ARRA Compliant: C
• Buy American Compliant: N
• Catalog Number: ECSK2023
• Country of Origin: CA
• Dimensions: 6.3 in L x 6.3 in W x 3 in D
• EU RoHS Indicator: C
• Height: 5.50 in
• Horsepower: 1 hp
• Length: 6.30 in
• Mounting: Box
• NEMA Rating: NEMA 5-15R/5-20R/6-20R
• Number Of Poles: 3
• Standard: Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G and Coal Dust; Class III
• Standards: Class I, Div 1, 2, Groups B, C, D, Class II, Div 1, 2, Group G, Coal Dust, Class IIICSA Certified
• Sub Brand: U-Line
• Type: Receptacle And Cover Assembly
• UNSPSC: 39121406
• UPC 11: 78138128141
• UPC 12: 781381281416
• Width: 6.30 in
• Brand: Appleton
• Manufacturer: Appleton Electric
• Amperage Rating: 20 A
• Number of Wires: 2
• Voltage Rating: 125 VAC
• Special Features: Explosionproof, dust-ignitionproof; Dead-front safety construction: grounding through extra pole and shell; Factory sealed, external seals not required, arcing is safely confined to receptacle interior; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
• GTIN: 00781381281416
• Item Type: Receptacle And Cover Assembly
• UNSPSC Code: 39111500
