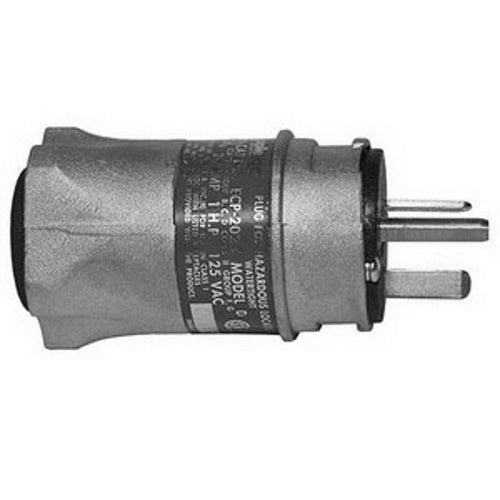

Appleton ECP-1523 ECP Standard Plug 3-Pole 2-Wire 15 Amp 125 Volt NEMA 5-15R 5-20R or 6-20R

Product Description

Appleton ECP-1523 is an ECP Standard Plug designed for use in explosive environments. It features three poles and two wires, with a maximum current rating of fifteen amps and a voltage rating of one hundred twenty-five volts. The plug is made from copper-free aluminum and meets various NEMA standards for reliable performance in harsh conditions.

• Amperage Rating: 15 AMP
• Voltage Rating: 125 VAC
• Explosionproof and dust-ignitionproof

Product Highlights

This plug fits any standard non-explosionproof receptacle as well as U-Line explosionproof receptacles, making it suitable for use in areas such as refineries and petrochemical plants.

Product Information

Standard Information

• Catalog Number: ECP-1523
• Manufacturer: Appleton Electric

Technical Specifications

• Amperage Rating: 15
• Voltage Rating: 125
• Number of Poles: 3
• Number of Wires: 2
• Material: Copperfree aluminum
• NEMA Rating: NEMA 7BCD, 9G
• Application: Fits any standard non-explosionproof receptacle and U-Line explosionproof receptacles
• Country of Origin: Mexico
