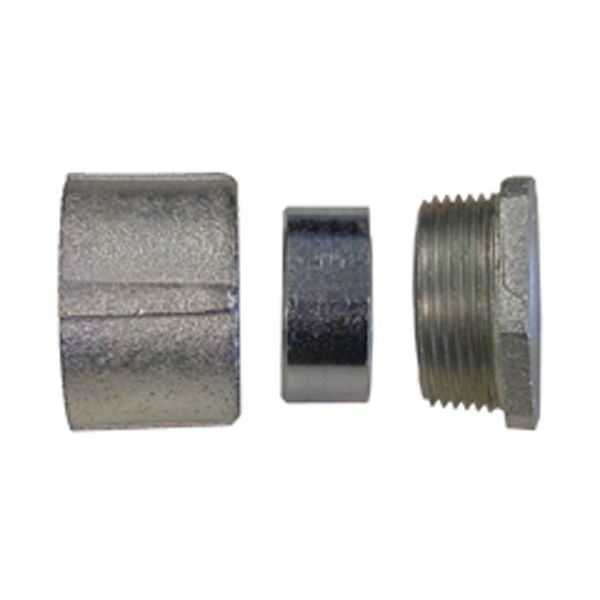

Appleton EC-200 3-Piece Concretetight Conduit Union, 2 in, 90 deg, EC-200

Product Description

The Appleton EC-200 is a 3-piece concretetight conduit union. This union is made from malleable iron and is designed for use with threaded rigid conduit or IMC. It provides a reliable connection between two lengths of conduit when rotation is not possible. The product features a 90-degree angle, making it ideal for turning corners in conduit installations.

• Constructed from malleable iron for durability.
• Designed for connecting IMC or rigid conduit.
• 90-degree angle for effective direction changes in installations.

Product Highlights

This Appleton conduit union simplifies the process of connecting conduits, providing a secure and efficient solution for electrical installations.

Product Information

Standard Information

• Brand: Appleton
• Part Number: EC-200

Technical Specifications

• Size: 2 in
• Angle: 90 deg
• Material: Malleable Iron
• Series: EC Series
• Dimensions: 3-3/8 in OD x 2-7/16 in L
• Suitable For Use With: IMC/Rigid Conduit
• Country of Origin: MX
• Standards: ARRA Compliant, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL 514B
