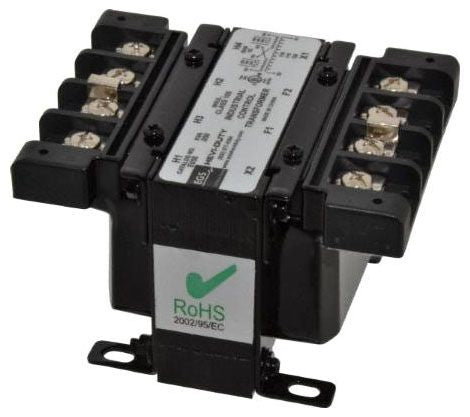

Appleton E250JL Transformer 0.25 Kva Heavy Duty

Product Description

The APPLETON E250JL is a 0.25 KVA heavy-duty transformer designed for industrial and commercial electrical distribution applications. Rated at 250 volt-amperes, this unit steps voltage up or down to supply control circuits, lighting loads, or other low-power electrical loads within a facility. Licensed electricians and industrial maintenance technicians install this transformer as part of panel, machine, or enclosure wiring. Its compact form factor and rugged construction make it suited for environments where space is limited and dependable power conversion is required.

This transformer is typically installed in commercial buildings, manufacturing facilities, and industrial control panels where a small-capacity step-down or isolation transformer is needed. It fits applications such as control circuit power supplies, small machine tools, and auxiliary power distribution. Electricians working on new construction or retrofit projects will find this unit appropriate for low-load branch circuit or control transformer duties.

Key Features

• 0.25 KVA capacity suitable for control circuit and low-load power conversion
• Heavy-duty construction rated for industrial and commercial service
• Compact dimensions of 9.7 inches x 6.8 inches x 7.4 inches for panel or enclosure mounting
• Manageable unit weight of 10.4 pounds for single-technician handling during installation

Compatibility

Designed as an OEM-style heavy-duty transformer replacement suitable for industrial control panel and commercial electrical distribution applications requiring 0.25 KVA capacity.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for transformer installations. Disconnect and lock out all upstream power sources before making any wiring connections. Secure the unit to a stable mounting surface inside a suitable enclosure rated for the application. Verify input and output voltage ratings against the circuit design before energizing.

Technical Specifications

• Capacity: 0.25 KVA
• Dimensions (L x W x H): 9.7 inches x 6.8 inches x 7.4 inches
• Weight: 10.4 pounds
• UPC: 78347253320

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E250JL
