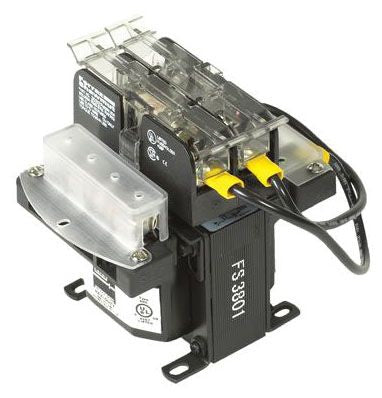

Appleton E200 Control Transformer 0.2 Kva 240x480-120v

Product Description

The APPLETON E200 is a heavy-duty control transformer rated at 0.200 KVA with a primary voltage of 240x480 volts and a secondary output of 120 volts. It steps down higher line voltages to a usable 120-volt control circuit, making it a standard component in industrial and commercial electrical panels, motor control centers, and machine control applications. Licensed electricians and industrial maintenance technicians install this transformer when a dedicated low-voltage control circuit is required to operate contactors, relays, or other control devices safely and reliably.

This transformer is suited for industrial control panel builds and retrofit applications where 240-volt or 480-volt primary power is available and a 120-volt control circuit is needed. It fits into motor control centers, automation enclosures, and similar assemblies found in commercial and light industrial facilities. Its compact footprint makes it practical for panel layouts with limited internal space.

Key Features

• 0.200 KVA capacity for low-load control circuit applications
• Dual primary voltage rating accepts 240-volt or 480-volt input
• 120-volt secondary output for standard control circuit devices
• Heavy-duty construction suited for industrial environments
• Compact dimensions allow installation in tight panel enclosures

Compatibility

Designed as an OEM-style replacement or new-installation control transformer for industrial control panels and motor control centers requiring a 240x480-volt primary to 120-volt secondary step-down circuit.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before installing or replacing this transformer. Verify primary voltage tap selection matches the available supply voltage before energizing. Ensure the transformer is mounted securely and that all terminal connections are properly torqued per panel manufacturer requirements.

Technical Specifications

• KVA Rating: 0.200 KVA
• Primary Voltage: 240x480 volts
• Secondary Voltage: 120 volts
• Length: 9.1 inches
• Width: 7.0 inches
• Height: 7.7 inches
• Weight: 9.8 pounds
• UPC: 78347253125

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E200
