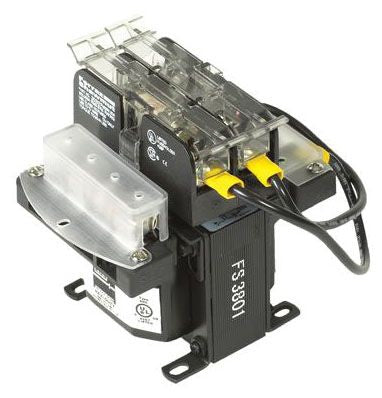

Appleton E100 Control Transformer 0.100 Kva 240x480-120v

Product Description

The APPLETON E100 is a heavy-duty shielded control transformer rated at 0.100 KVA with a primary voltage of 240x480 volts and a secondary output of 120 volts. It is used to step down line voltage to a safe control-circuit voltage level in industrial and commercial electrical systems. The shielded construction helps suppress electrostatic noise between the primary and secondary windings, which is critical in control circuits where signal integrity affects relay, PLC, and low-voltage control panel operation. Licensed electricians and industrial maintenance technicians are the primary installers of this transformer type.

The E100 is suited for use in control panels, motor control centers, and machine tool electrical systems where a stable 120-volt control circuit is required from a 240- or 480-volt power source. It is appropriate for both new installations and retrofit applications in light industrial and commercial environments where a compact, low-KVA transformer is specified for relay logic or control circuit power supply duties.

Key Features

• 0.100 KVA capacity for low-demand control circuit applications
• Dual primary voltage input of 240x480 volts accommodates common industrial supply voltages
• 120-volt secondary output suitable for standard control circuit devices
• Shielded winding construction reduces electrostatic interference in sensitive control circuits
• Heavy-duty design intended for continuous-duty industrial and commercial use

Compatibility

Designed as an OEM-style replacement or new-installation control transformer for industrial control panels and motor control centers requiring a 240x480-volt primary to 120-volt secondary step-down at 0.100 KVA.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any wiring connections to the primary or secondary terminals. Verify that the supply voltage matches the selected primary tap before energizing. Proper grounding of the transformer enclosure is required per applicable NEC provisions.

Technical Specifications

• KVA Rating: 0.100 KVA
• Primary Voltage: 240x480 volts
• Secondary Voltage: 120 volts
• Winding Type: Shielded
• Weight: 5 pounds

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E100
