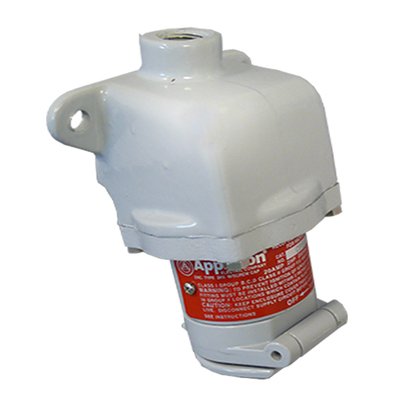

Appleton CPSA-2350 pin and sleeve receptacle 1/2 inch

Product Description

The APPLETON CPSA-2350 is a pin and sleeve receptacle designed for explosion-proof protection in hazardous locations. It features delayed action construction and is certified for use in Class I, Division 1 and 2 Groups B, C, D locations. The receptacle is suitable for stationary or portable equipment in damp or corrosive environments.

• Explosionproof protection
• Delayed action construction
• Certified for use in Class I, Division 1 and 2 Groups B, C, D locations

Product Highlights

Provides explosionproof protection for equipment in hazardous, damp, or corrosive locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CPSA-2350
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: CPSA-2350
• Manufacturer: Appleton
• Product Series: CPS
• Family Series: Appleton Plugs & Receptacles, CPS Series
• Description: Pin and Sleeve Receptacle Assembly, Type Dead End, 15 Deg Angle, Voltage Rating 120 to 240 VAC, 24 VDC, Current Rating 20 Ampere, Power Rating 1 HP at 24 VDC, Number of Poles 3, Number of Wires 2, Hub Size 1/2 Inch, Mating Plug CPP, Enclosure Class I Div
• Connection Type: Receptacle
• Connection Description: Angled
• Current Rating: 20 A
• Voltage: 240 V
• Number of Poles: 3
• Number of Wires: 2
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: Yes
• Material: Metallic
• Terminal Type: Screw
• NEMA Rating: NEMA 3R, NEMA 3X
• Approvals: CSA, UL
• Comments: (1) 1/2 " Hub
• Case Material: Metallic
• Series: Cps Series
• Hub Size: 1/2 Inch
