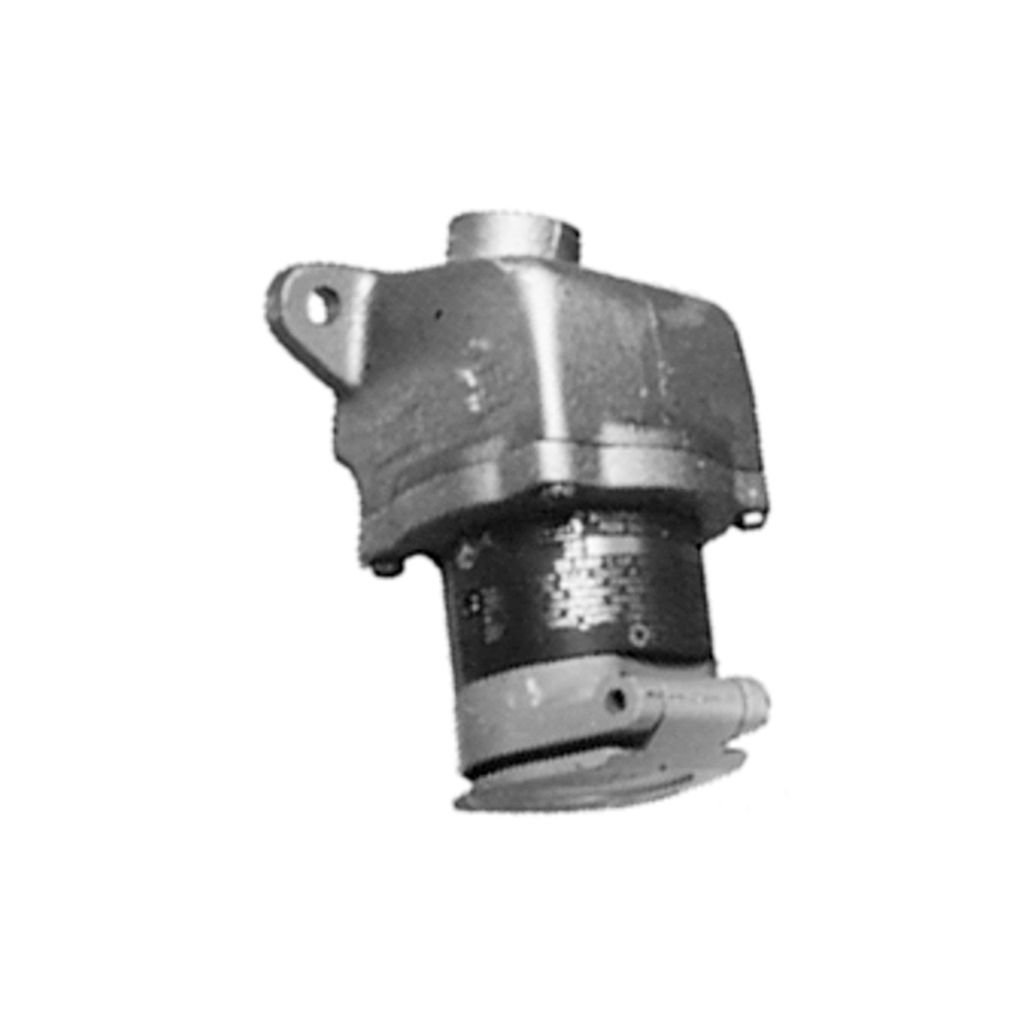

Appleton CPR-23 45D Angle Receptacle Uni

Product Description

The Appleton CPR-23 45D Angle Receptacle Uni is a CPS Factory Sealed 20 Amp Pin and Sleeve Receptacle featuring delayed action construction. It provides explosionproof protection for stationary or portable equipment in hazardous, damp, or corrosive locations. The CPS series is certified for use in Class I, Division 1 and 2 Groups B, C, D locations.

• Factory sealed: external seals not required
• CPS Series plug and receptacles are supplied with pressure terminal connectors
• Delayed action construction. Insert plug partially rotate slide on front of receptacle and insert plug fully

Product Highlights

This receptacle is suitable for use with stationary or portable equipment such as lighting systems, conveyors, heaters, and more, in environments where dampness or corrosive conditions exist.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CPR-23
• Country of Origin: Mexico

Technical Specifications

• Type: CPR Series Replacement Receptacle Cover Assembly
• Brand: Appleton
• Voltage Rating: 120 - 240 VAC, 24 VDC
• Amperage Rating: 20 Amp
• Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Horsepower: 1 hp
• Application: For CPP Mating Plugs
• Number of Poles: 3
• Number of Wires: 2
• Mounting: Box
• NEMA Rating: NEMA 3R
• Standard: Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; UL Standard: UL 1010 (UL 1203); UL Listed: E10784, E81751; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 159; CSA Certified: 038644
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Special Features: Delayed action construction; Insert plug partially rotate slide on front of receptacle and insert plug fully; Factory sealed: external seals not required; Energizes receptacle terminals deeply recessed to prevent accidental touching; Used in locations where damp or corrosive conditions exist, where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, NEMA 7B/7C/7D/3RX
• Approval: UL 1010, CSA C22.2
• Includes: Cover
• Current Rating: 20 A
• Voltage: 120-240 V, 24 V
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Standards: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, CSA C22.2 No 25, C22.2 No 30, C22.2 No 159, CSA 038644 Certified, UL 1010 (UL 1203), UL E10784, E81751 Listed, RoHS Complaint
