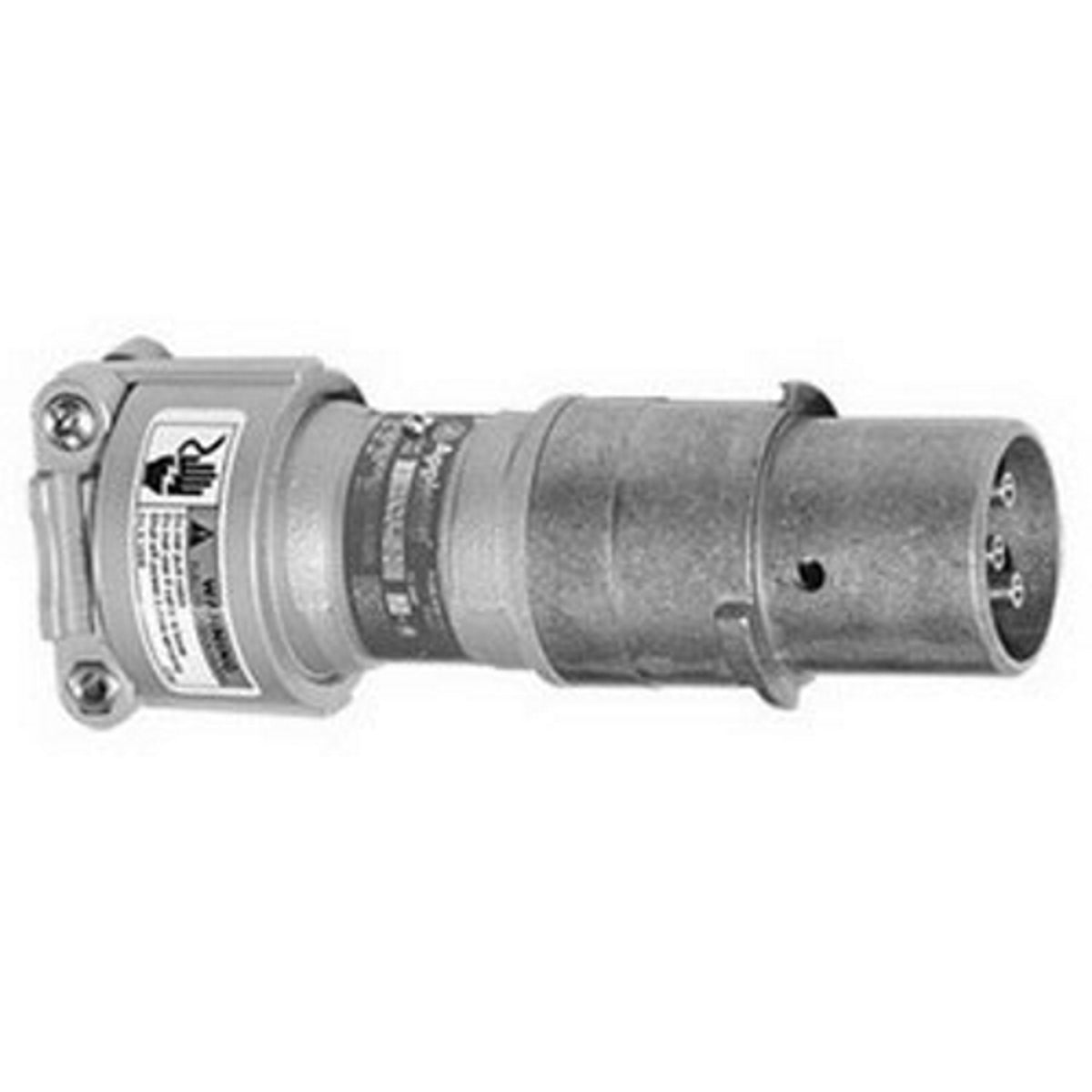

Appleton CPH-6034BC Plug 60A 3W 4P

Product Description

The Appleton CPH-6034BC is a 60-amp, three-wire, four-pole plug. It is designed for use in hazardous locations. The plug is constructed of copper-free aluminum, ensuring durability and resistance to corrosion. This plug is suitable for environments requiring a NEMA 3, 3R, 4, 4X, 7BCD, and 9FG rating, making it ideal for industrial applications.

• Amperage Rating: 60 AMP
• Voltage Rating: 125 - 250/480 VAC
• Dimensions: Width 3.06 inches x Height 3.06 inches x Depth 8.44 inches

Product Highlights

This CPH Series plug meets Class I, Division 1 and 2 standards, Class II, Division 1 and 2 for groups F and G. It ensures safety and reliability in power connections.

Product Information

Standard Information

• Catalog Number: CPH-6034BC
• Manufacturer: Appleton Electric

Technical Specifications

• Number of Poles: 4
• Number of Wires: 3
• Phase: 3 PH
• Material: Copperfree Aluminum
• NEMA Rating: 3, 3R, 4, 4X
• Motor Horsepower: 5 HP
• Plug Cable Diameter: 0.39 - 1.375 inches
• Application: For JBR Receptacles
• Approval: UL, CSA C22.2
