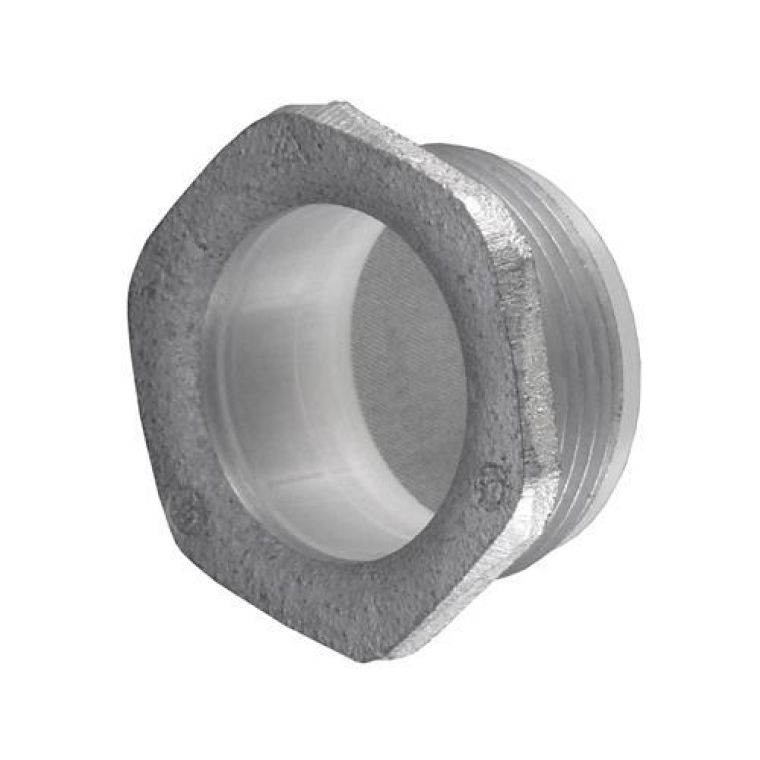

Appleton CN-350I bushed insulated conduit nipple 3-1/2 inches

Product Description

The APPLETON CN-350I is a 3-1/2" bushed insulated conduit nipple. It is designed for use with IMC/rigid conduit fittings. Constructed from die cast zinc with a zinc plated finish. It provides a short threaded conduit section with an integral insulating bushing that protects conductor insulation.

• Used with a locknut to connect two boxes side by side or back to back
• Used with a locknut to connect fixture housings and continuous runs
• Constructed from zinc plated zinc

Product Highlights

The APPLETON CN-350I bushed insulated conduit nipple is suitable for use with IMC/rigid conduit fittings.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CN-350I
• Country of Origin: Mexico

Technical Specifications

• Finish: Zinc Plated
• UNSPSC: 39121311
• Material: Die Cast Zinc
• Application: Used through knockout to connect box to conduit coupling
• Size: 3-1/2
• Type: Bushed Insulated
• Series: CN Series
• Suitable For Use With: IMC/Rigid Conduit Fittings
• Catalog Number: CN-350I
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• UPC: 781381223539
• GTIN: 00781381223539
• Conduit Type: RMC / IMC
• Fitting Subtype: Bushed
• Fitting Type: Nipple
• Insulated: Yes
• Specifications Met: NEMA FB-1, CSA 065178 C22.2 No. 18.3
• Trade Size: 3-1/2"
• Length: 8.2000
• Length UOM: Inch
• Width: 5.6000
• Width UOM: Inch
• Height: 0.9800
• Height UOM: Inch
• Weight: 1.220
• Weight UOM: Pounds
