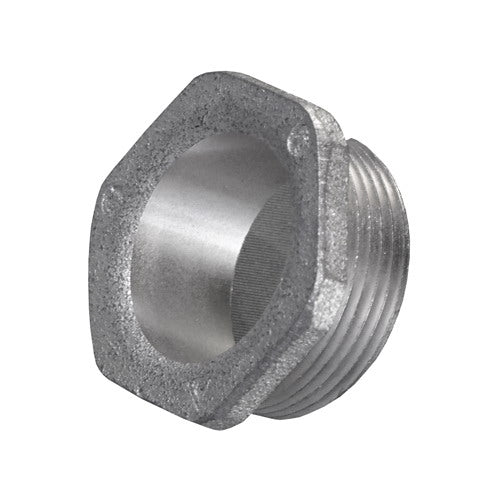

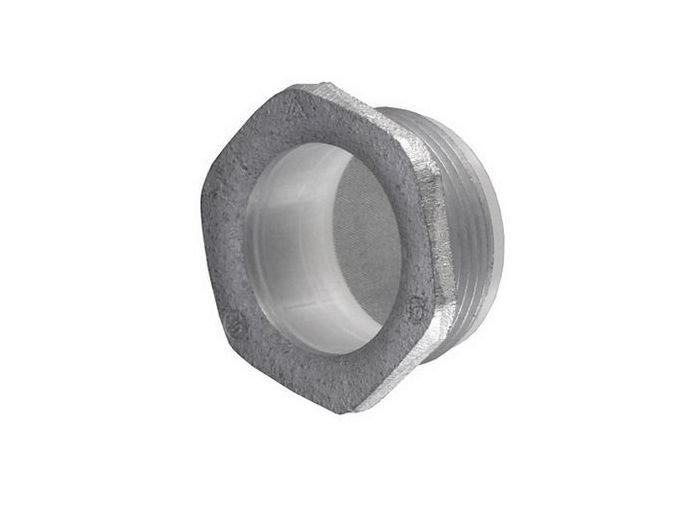

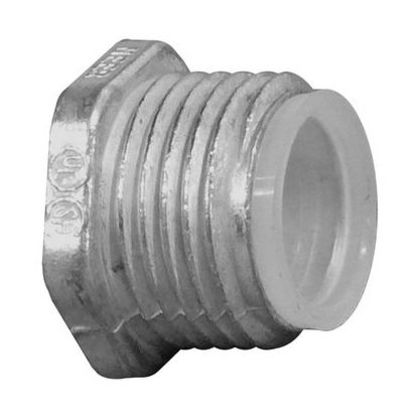

Appleton CN-125I 1-1/4 inches Insulated Bushed Nipple

Product Description

The APPLETON CN-125I 1-1/4" Insulated Bushed Nipple is for use with rigid/IMC conduit. It adapts an outlet hole to the next larger size of conduit. Bushed nipples are used through knockouts to connect box to conduit coupling. They can be used with a locknut to connect two boxes or fixture housings.

• For Use With Rigid/IMC Conduit
• Insulated
• For Used Through Knockout To Connect Box To Conduit Coupling

Product Highlights

The APPLETON CN-125I insulated bushed nipple is made of malleable iron and is suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CN-125I
• Country of Origin: USA

Technical Specifications

• Material: Malleable Iron
• Diameter: 1 1/4 in
• Manufacturer Part Number: CN-125I
• Manufacturer: Appleton
• Product Series: Threaded Enlarger
• Family Series: Appleton Fittings, Threaded Enlarger Series
• Type: Chase
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Trade Size: 1-1/4 "
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: No
• NEMA Rating: NEMA FB1
• Insulated Throat: Yes
• Approvals: CSA, UL
• Application: For Used Through Knockout To Connect Box To Conduit Coupling
• ARRA Compliant: Y
• Buy American Compliant: N
• Connection: Male Threaded
• Country of Origin: MX
• Dimensions: 2.13 in OD x 0.94 in L
• EU RoHS Indicator: C
• Series: CN Series
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• Standards: ARRA CompliantRoHS CompliantCSA C22.2 No. 18.3 File No. 065178NEMA FB-1UL 514B File No. E14814
• UNSPSC: 39121311
• UPC 11: 78138119550
• UPC 12: 781381195508
• Finish: Zinc Plated
• Size: 1-1/4 in
• Suitable For Use With: IMC/Rigid Conduit
