Appleton CLB-75MN 1-Hole Clamp Back 3/4 Inch Replacement MPN

Product Description

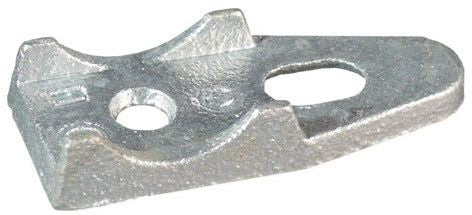

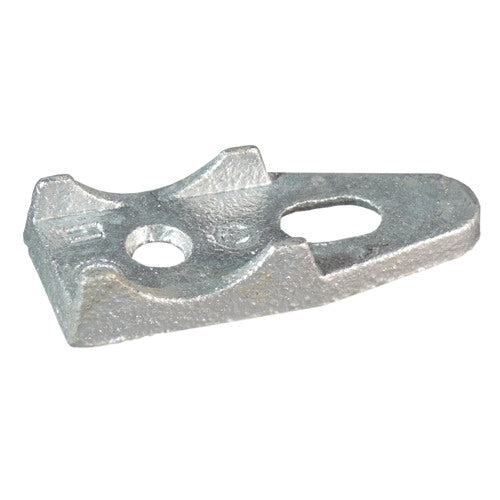

The Appleton Clamp Back with MPN CLB-75MN is designed for reliable support of rigid conduit systems. This clamp back is made from malleable iron and has a hot-dip galvanized finish for corrosion resistance. It is ideal for installation with RMC and IMC conduit. The clamp provides essential spacing from the mounting surface when using pipe clamps.

• Material: Malleable Iron
• Finish: Hot-Dip Galvanized
• Trade Size: 3/4 Inch

Product Highlights

This clamp back meets the CSA C22.2 No. 18.4 and CSA 065178 standards, ensuring quality and safety for commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: China

Technical Specifications

• Catalog Number: CLB-75MN
• Material: Malleable Iron
• Dimensions: 2.5 Inches (Length) x 1.13 Inches (Width) x 0.5 Inches (Height)
• Bolt Diameter: 0.25 Inch
• Application: For use with RMC, IMC, and EMT conduit
• Special Features: Provides spacing from mounting surface when used with pipe clamps
