Appleton CH-50S Conduit Hanger Clamp 1/2-3/4 Single Conduit Hanger & Clamp

Product Description

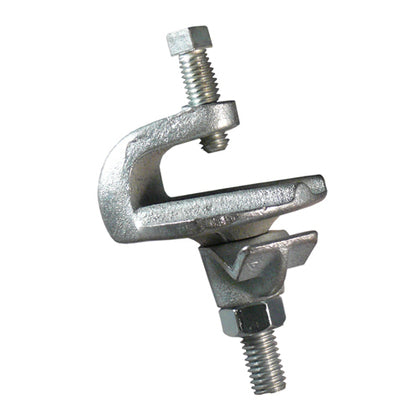

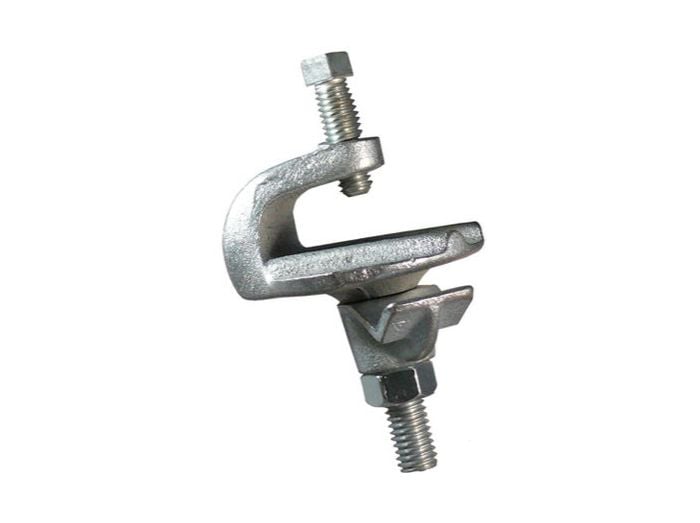

The APPLETON CH-50S is a conduit hanger clamp designed for 1/2-3/4 inch rigid conduits. Constructed from malleable iron with a zinc plated finish, this clamp is suitable for use with IMC/EMT/Rigid Metal Conduit. It is designed for single line conduit runs on vertical and horizontal beams.

• Accommodates more sizes of conduit with fewer clamps.
• Designed for single line conduit.
• Suitable for use with IMC/EMT/Rigid Metal Conduit

Product Highlights

The APPLETON CH-50S provides a reliable and versatile solution for conduit support, simplifying installation and reducing inventory needs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CH-50S
• Country of Origin: United States

Technical Specifications

• Material: Malleable Iron
• Diameter: 3/4 in, 1/2 in, 1 in
• Brand: Appleton
• Type: Conduit Clips/Clamps/Hangers
• Manufacturer: Appleton
• MPN: CH-50S
• Accessory Type: Conduit Hangers
• Country of Origin: United States
• Family Series: Appleton Conduit Mounts
• Hazardous Location: No
• Composition: Iron
• Style: Clamp
• EMT Size (in): 1 ", 1/2 ", 3/4 "
• Rigid Size (in): 1/2 ", 3/4 "
• Finish: Zinc Plated
• Application: For conduit runs on vertical and horizontal beams
• Size: 1/2 to 3/4 in Rigid/1/2 to 1 in EMT
• Series: CH Series
• Conduit Type: 1/2 to 3/4 Inch Rigid, 1/2 to 1 Inch EMT
• Suitable For Use With: IMC/EMT/Rigid Metal Conduit
