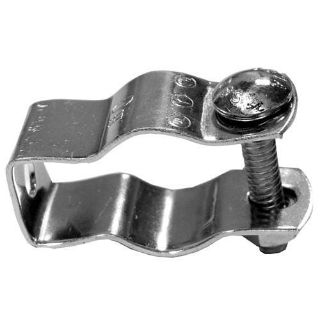

Appleton CH-300-B CH-B Conduit Hanger with Carriage Bolt and Nut 1-1/4HW in

Product Description

The Appleton CH-300-B conduit hanger is designed for securely suspending various types of conduits. This model is made from steel and features a zinc-plated finish for durability and corrosion resistance. It is compatible with IMC, EMT, PVC, and rigid conduits, ensuring versatility in installation. With an overall dimension of two point eight five inches in length, one point nine inches in width, and zero point eight eight inches in depth, it provides a compact yet robust solution for overhead conduit support.

• Material: Steel
• Finish: Zinc Plated
• Size: 1-1/4HW in

Product Highlights

This conduit hanger is ideal for overhead installation applications, providing reliable support for various conduit types.

Product Information

Standard Information

• Brand: Appleton
• MPN: CH-300-B

Technical Specifications

• Dimensions: 2.85 in L x 1.9 in W x 0.88 in D
• Material: Steel
• Finish: Zinc Plated
• Suitable For Use With: IMC/EMT/PVC/Rigid Conduit
• Application: For securing and suspending rigid conduit from overhead supports
• Series: CH-B
